Intel 10850K Overclock Bios Settings Quick And Easy
If you want to toss a cup of coffee BTC bc1qwsgcvcp8ddhppx792rfyw2hwv62uzjsmt35wme
Intel 10850K Overclock Bios Settings Quick And Easy To Follow. With the release of the new CPU Release for Intel on Nov 4 2021. Thought I would show show overclock settings for 10 Gen 20 Thread CPU ,I think there might be some people buying the older 10 Gen 20 Thread CPU's.
Always test stability after any BIOS changes.

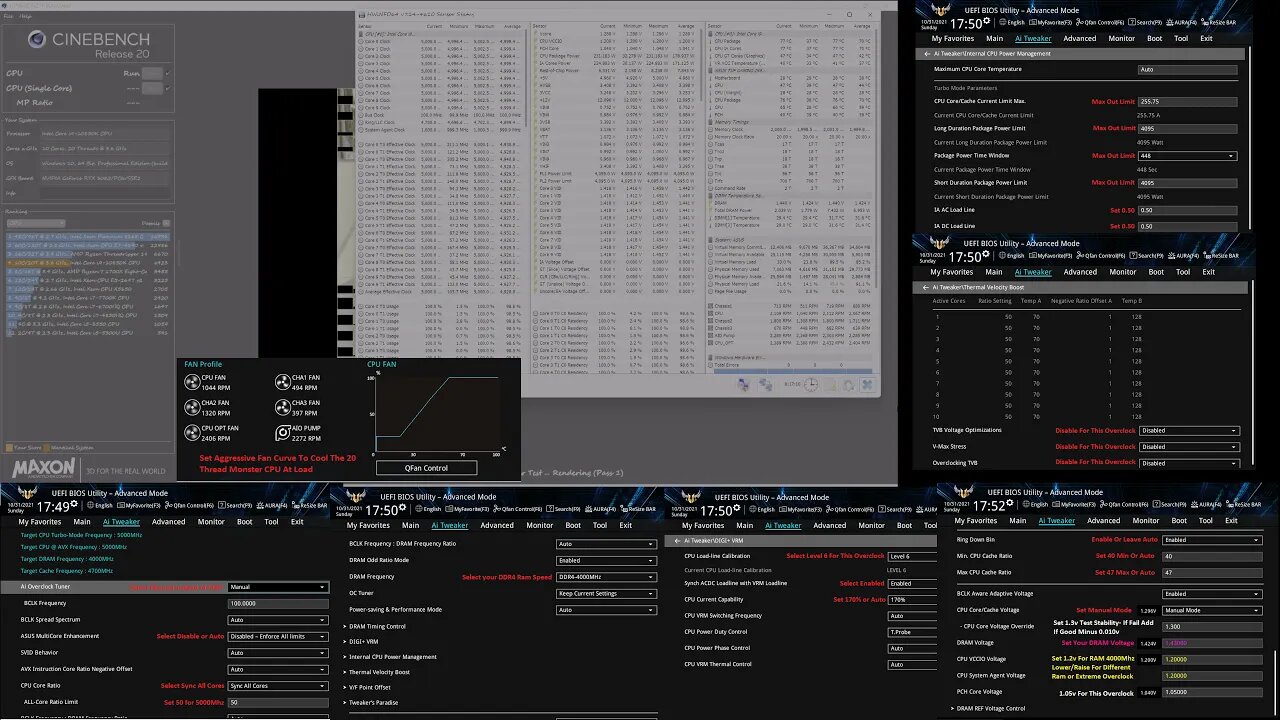

The test in the video was recorded at the end of 30 Minutes of AIDA64 Stress Test AVX setting and Cinebench 20 Multi run.
These settings are for 5000Mhz normal 10850K and Normal CPU Cooling
For 5100Mhz CPU Voltages 1.40v and higher Require Great CPU Cooling
For 5200Mhz CPU Voltages 1.48v and higher Require Great CPU Cooling
BIOS settings:AI Tweaker
♦AI Overclock Tuner = Manual
♦Asus Multi Core Enhancement = Disable Or Auto
♦CPU Core Ratio = Sync All Cores
♦All Core Ratio Limit = 50
♦DRAM Frequency = Select Your DRAM Speed
♦Ring Down Bin = Enable Or Auto
♦Min. CPU Cache Ratio = 40 Or Auto
♦Max CPU Cache Ratio = 47 For This Overclock Or Auto
♦CPU Core/Cache Ratio = Manual Mode
♦CPU Core Voltage Override = 1.30 Test Stability
♦DRam Voltage = Set Your DRAM Voltage
♦CPU VCCIO = 1.20v For This Overclock with 4000Mhz Ram Lower/Raise For Different RAM Or Extreme Overclock- Test Ram Stability
♦CPU System Angent Voltage = 1.20v For This Overclock with 4000Mhz Ram Ram Lower/Raise For Different RAM Or Extreme Overclock- Test Ram Stability
♦PCH Core Voltage = 1.05v Fine For This Overclock
BIOS settings:AI Tweaker/Digi + VRAM
♦CPU Load Line Calibration LLC = 6
♦Sync ACDC Loadline With VRM Loadline = Enable
♦CPU Current Capability = 170% Max
BIOS settings:AI Tweaker/Internal CPU Power Management
♦CPU Core/Cache Current Limit Max = 255.75 Amp Max Out
♦Long Duration Package Power Limit = 4095 Watt Max Out
♦Package Power Time Limit = 448 Sec Max Out
♦Short Duration Package Power Limit = 4095 Watt Max Out
♦IA AC Load Line = 0.050
♦IA DC Load Line = 0.050
BIOS settings:AI Tweaker/Thermal Velocity Boost
♦TVB Voltage Optiminzations = Disable
♦V-Max Stress = Disable
♦Overclocking TVB = Disable
BIOS settings:Advanced/CPU Settings
♦Intel Speed Step = Disable Or Auto Is Fine
♦Intel Speed Shift = Disable Or Auto Is Fine
♦CPU C-States = Disable Or Auto Is Fine
♦ CPU - Intel 10850X With MasterLiquid Lite ML240L RGB AIO (5000Mhz)
♦ GPU - Nvidia RTX 3080
♦ RAM - G.Skill 32 GB DDR4 (CL 17 4000Mhz)
♦ Mobo - Asus Tuf Gaming Wifi (BIOS 2420)
♦ SSD - NVME SSD 1TB
♦ DSP - LG B9 65" 4K UHD HDR OLED G-Sync Over HDMI
♦ PSU - Antec High Current Pro 1200W
-
