Name: Trimming my final patch panel to fit the blazer
Uploaded: 2022-03-11T20:05:00+00:00
Duration: 12 min 35 s
Description: I finally start the assembly process of trimming my sheet metal patch panel to size, scribing the fender of my 1971 Chevy blazer so it matches the patch and then cutting both to final size. A good por

2 years ago

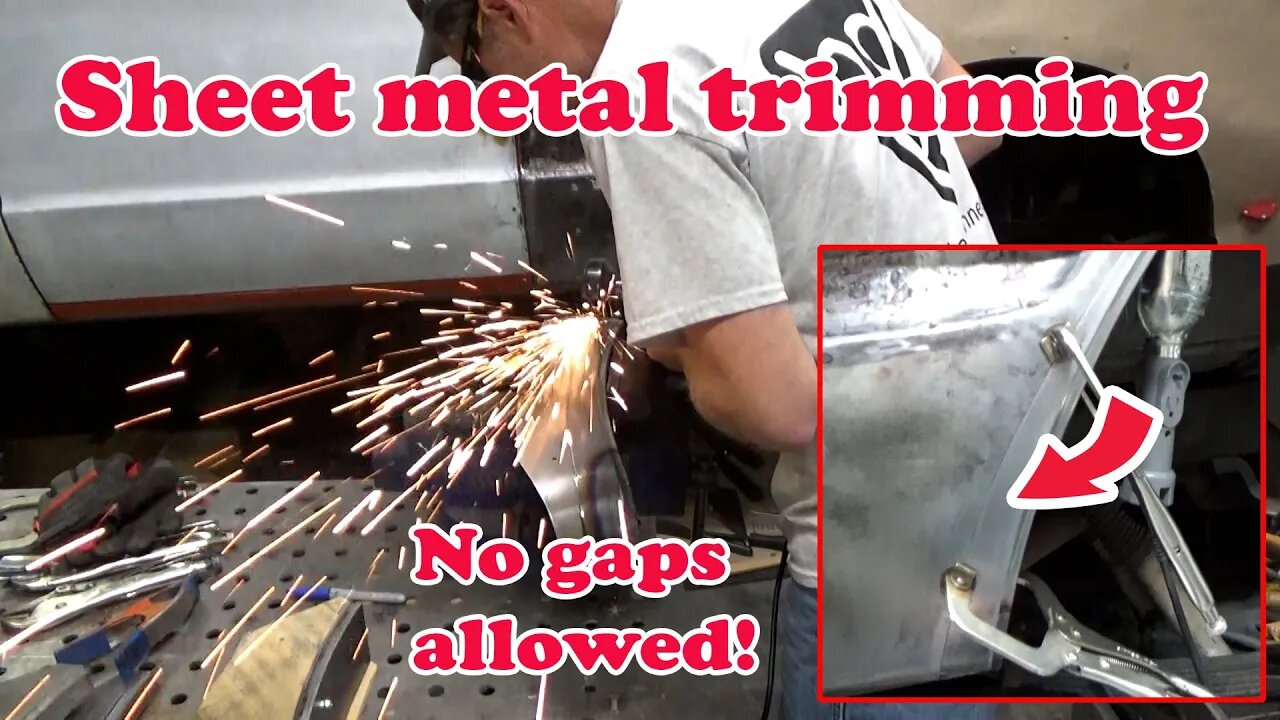

I finally start the assembly process of trimming my sheet metal patch panel to size, scribing the fender of my 1971 Chevy blazer so it matches the patch and then cutting both to final size. A good portion of the video is me carefully trimming and filing the patch so it fits the fender with an extremely small gap to enable a good TIG weld.

If you would like to see the early trials, check this video out.

How I made the final patch panel: https://youtu.be/ikLLzJ8MIPg

How I made the shrinking pliers: https://youtu.be/RX5pyUncGyk

How I made a wooden clamping block: https://youtu.be/h54ZZtk7Vgg

How I made a hammer form: https://youtu.be/KVCuWbVYbgc

Hammer and dolly: https://youtu.be/GcK7O5nm_zc

Shrinking disc: https://youtu.be/kCKVejMQqao

TIG welding with Primeweld TIG 225: https://youtu.be/KwjkODBF4OI

#firstgen #chevy
