EEVblog #265 - Philips PM6672 Timer Counter Teardown
13 years ago
24
http://eevblog.com/files/PM6672-Service-Manual.pdf
http://eevblog.com/files/PhilipsPM6673-76-Service-Manual.pdf
PHOTOS: http://www.flickr.com/photos/eevblog/sets/72157629731591013/
The first of the new regular segment on the EEVblog - Teardown Tuesday.

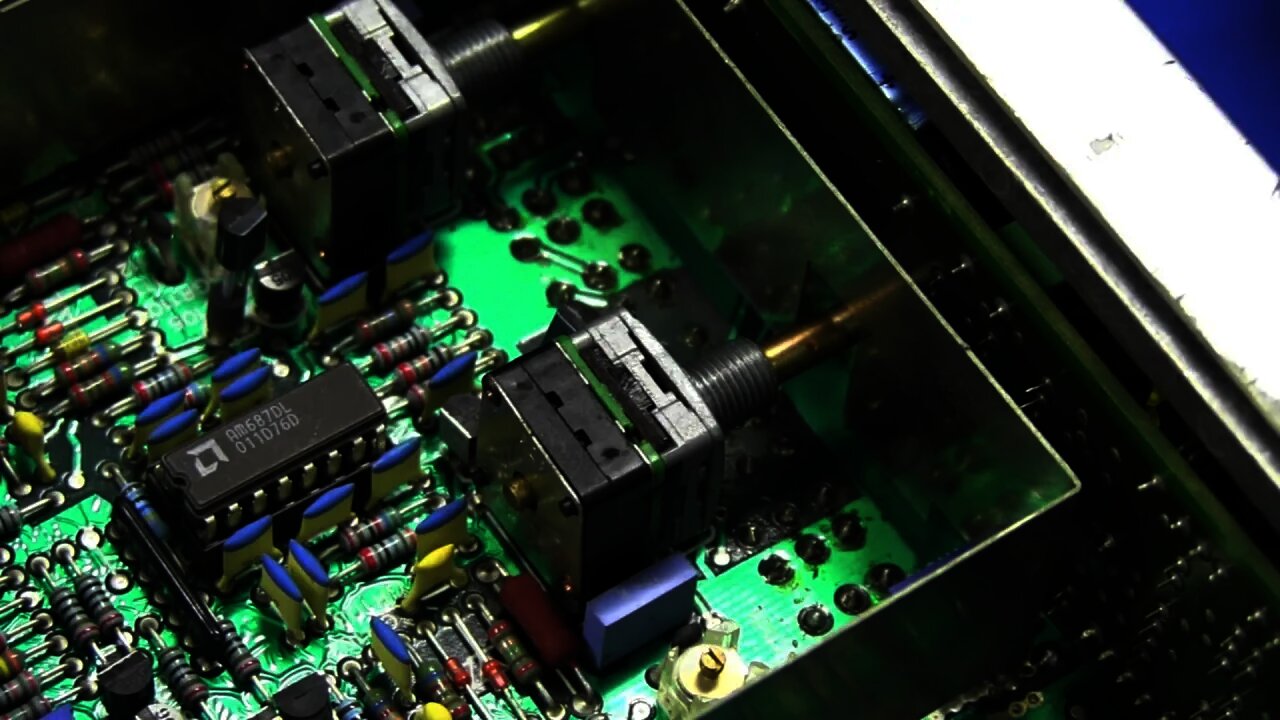

Dave cracks open the Philips PM6672 1GHz Timer Counter, and more interestingly, the PM9690 10MHz oven stabilised reference crystal oscillator.
