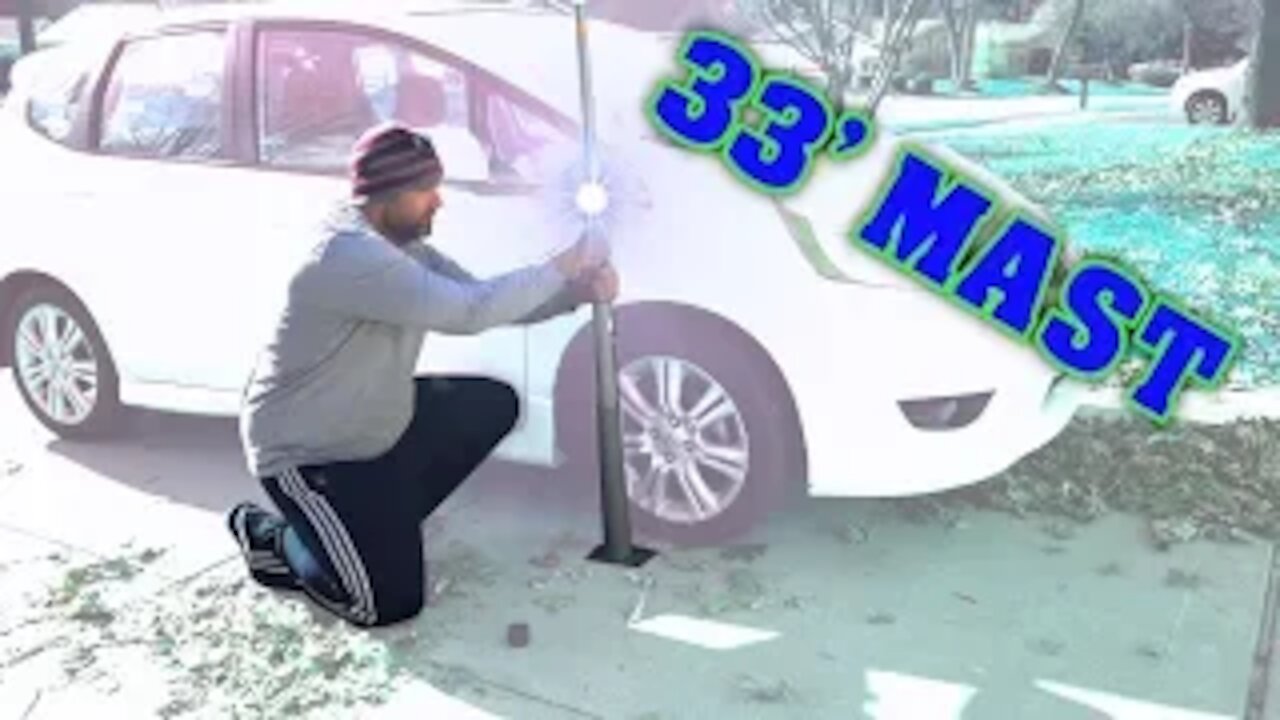

SOTABEAMS 33' Compact Antenna Travel Mast 10m Look & Feel
10m (33ft) Travel Mast. With a transport-length of only 67cm ( 26.5 inches ) it fits in a suitcase making it perfect for vacation DXing.
Detailed Specifications:
Not sure which mast to choose? Click here for our handy comparison chart.
Extended length: 10 metres (32 ft). Lengths approximate - click here to find out more.
Packed length: 67 cm (26.4 inches)
Number of sections: 17
Wall thickness: 1.5 mm (0.06 inches) bottom, 0.67 mm (0.03 inches) top
Weight: 1.3 kg (2.9 lbs)
Mast Material: glass-fiber composite (non-conducting)
Tube diameter: top 3.9mm (0.15 inches) base 49 mm (1.9 inches)
Base cap diameter: 55 mm (2.2 inches)
Tube colour: Light grey
Mast sections hollow to the top
Supplied with black carry bag with tie
FAQ:
Spare parts are available - see below.
The mast is made of Glass Reinforced Plastic (GRP) = Fiberglass. This is an insulator with excellent RF properties (very low loss).
Friction lock: pull each section firmly with a twisting motion for best lock. When erecting always start with the smallest section. When taking down always start with the largest section.
Top sections may be removed by unscrewing the endcap at the bottom of the mast.
-
