Inside the Brain of Variable Speed ECM Motors: Wiring, Control & Diagnostics

The most comprehensive breakdown of wiring, control and diagnostics of variable speed ECM motors.

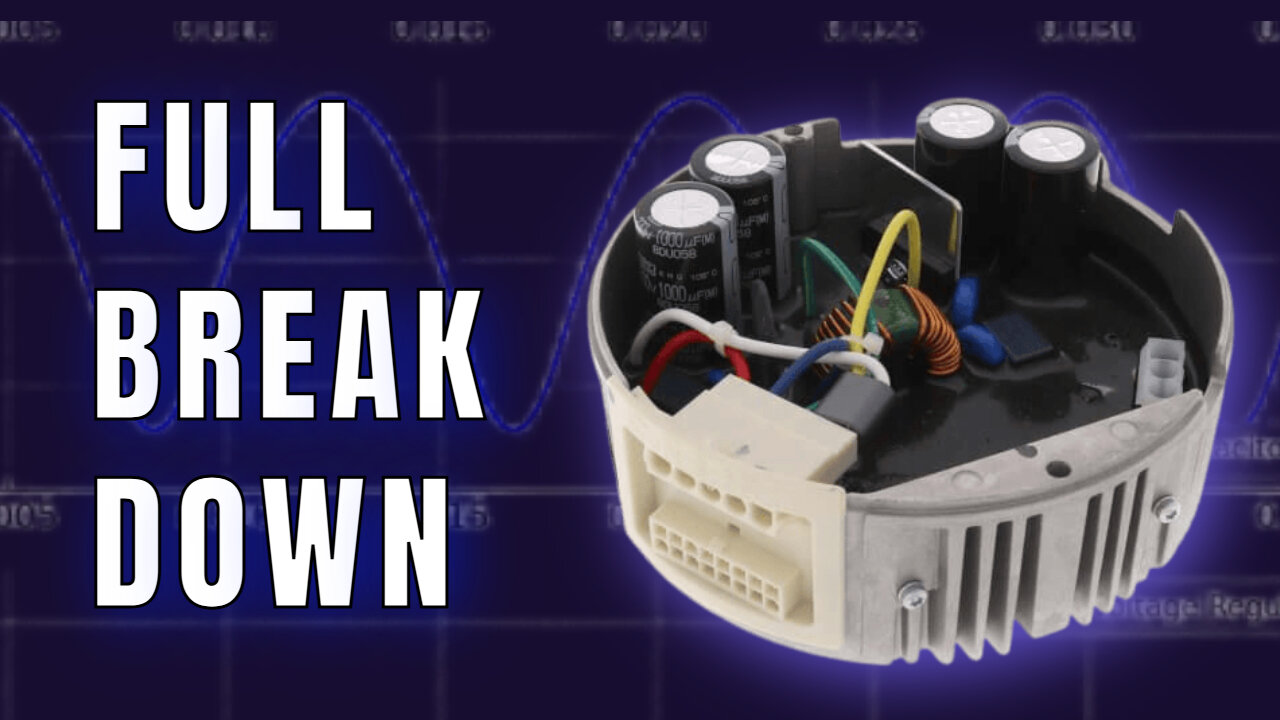

In this video, I tear one apart and show you exactly how the electronics work — from the thermistor and choke to the rectifier and capacitors that feed the blower.

You’ll also get a full look at the wiring and diagnostics process for these motors:

How the 5-pin and 16-pin connectors are used

What the orange/blue timing signals do

How to jumper the motor to run without a furnace board

Step-by-step procedures for testing the thermistor, capacitors, and communication lines

How to recognize when the module is the problem vs. the motor itself

By the end, you’ll understand not only the parts inside the ECM module, but also how to test, wire, and diagnose these motors in the field.

Whether you’re a tech in the field or just curious how modern HVAC motors “think,” this breakdown will give you a clear picture of what’s happening inside the brain of a variable speed motor.
