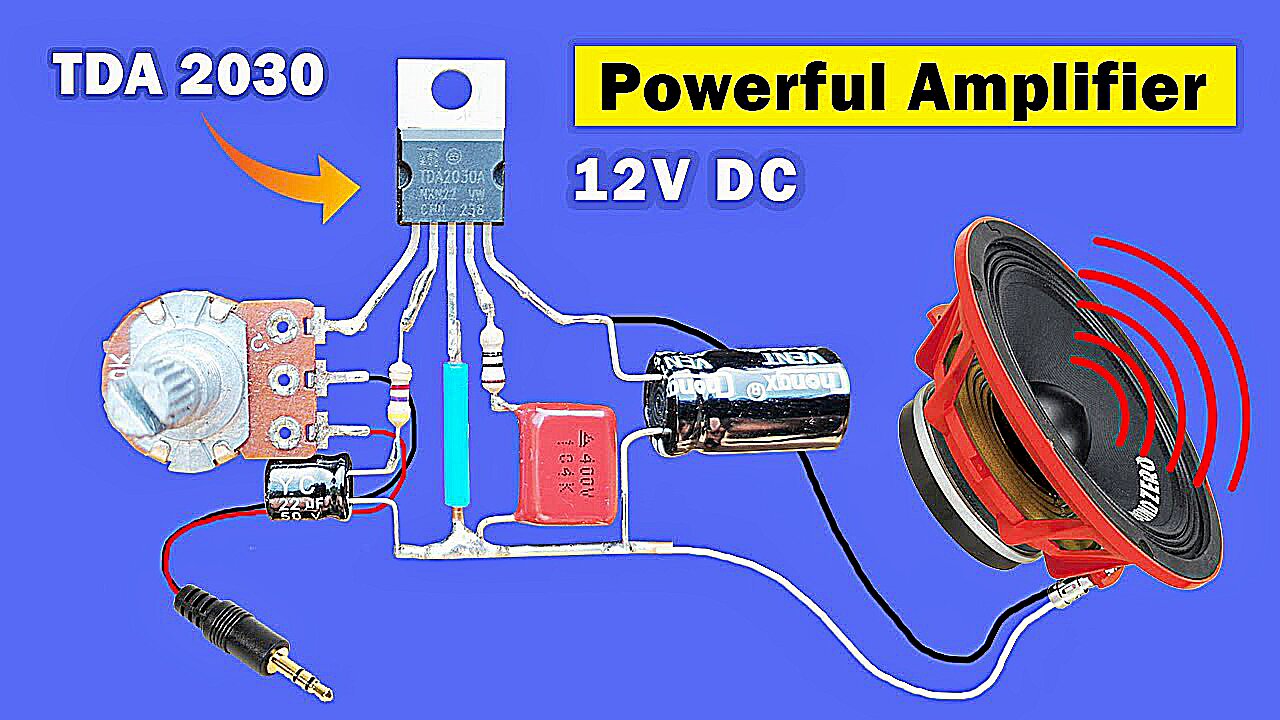

DIY simple Powerful Amplifier using TDA2030, Homemade Amplifier 12V

DIY simple Powerful Amplifier using TDA2030, Homemade Amplifier 12V. ( Diy simple powerful amplifier )
TDA2030A is a monolithic IC in a Pentawatt package intended for use as a low frequency class AB amplifier. This is a Class AB amplifier. But good a powerful amplifier. subwoofer

Components used in this project:–

1. TDA2030
2. 47K Potentiometer
3. 1000uf 25V cap
4. 2200uf 35V
5.100K x3
6. 4.7K
7. 33K
8. 0.1uf Cap
9. 5A diode
10. 10 Ohm
11. 22uf 50v x2
12. 3.3uf 50v
13. Specker

** Circuit Diagram 👉https://drive.google.com/file/d/1kmqJZFKhuKAlcfH5Rr1WYze88tfv0xcr/view?usp=sharing
