Master Servo Control on STM32 with PWM & HAL Libraries

Save
11 hours ago
10
Technology STM32 PWM servo control servo motor STM32 STM32CubeMX servo PWM Keil servo tutorial SG90 STM32 PWM STM32 HAL PWM servo servo angle control STM32 embedded systems servo microcontroller servo project controllerstech servo STM32

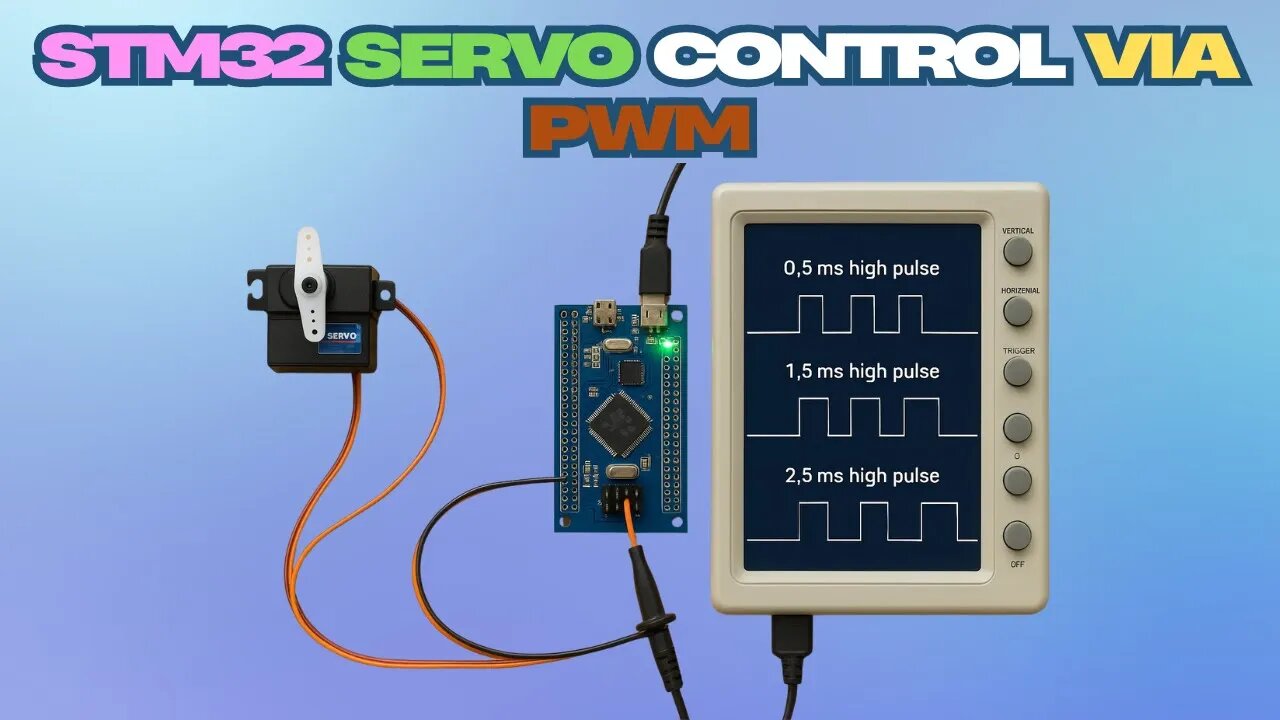

Learn how to use PWM on an STM32 microcontroller to control a standard servo motor (0°–180° movement), configured using STM32CubeMX and implemented in Keil with HAL libraries.

🧰 This tutorial covers:
- Configuring Timer and PWM channels in CubeMX
- Generating a 50 Hz PWM signal (~20 ms period)
- Translating pulse widths (0.5 ms to 2.5 ms) into servo angles
- Starting PWM in firmware using HAL_TIM_PWM_Start()
- Dynamically adjusting position using __HAL_TIM_SET_COMPARE()

📥 Download the complete Keil project and code:
🔗 https://controllerstech.com/servo-motor-with-stm32/

📺 Related Projects:
👉 Continuous Rotation Servo with STM32 PWM : [https://youtu.be/M_iE7M00Gq0]
👉 How to use PWM in STM32 : [https://youtu.be/OwlfFp8fPN0]

👨‍💻 Ideal for embedded systems beginners, hobbyists, and robotics enthusiasts working with microcontrollers, motors, and precision motion control.
