3d Printing & Assembly of a Complex Model: SpaceX Starship, Super Heavy, and Launch Tower - Part 7

2 months ago
16

This video series explores how to 3d print and assemble a very complex 3d model of a real object. In this case, the SpaceX Starship Rocket, Super Heavy Booster, and Launch Tower:
https://en.wikipedia.org/wiki/SpaceX_Starship
It's the most powerful rocket every built and is designed to be completely and (eventually) rapidly reused.

I do a lot of public outreach about space exploration through my astronomy club. I've found it much more effective to have 3d models of things I'm explaining than just showing people pictures.

I knew I needed to have a 3d model of this rocket to connect with the public at future events. I thought about designing my own, but I decided it would be better to buy an already designed model and print that. That would be a lot faster than starting from scratch. I chose the 1:200 scale MoreThan3d version:
https://morethan3d.com/product/space-models/spaceship-booster-olm-olit-xs3/
At 1:200th scale, after some disassembly, it will fit in a box so I can transport it to events.

Here's what part of the series covers:
Part 1: Selection of design and MoreThan3d website
Part 2: Printing of Starship upper stage (except raptor engines which are part of the booster part)
Part 3: Printing Super Heavy Booster
Part 4: Printing Orbital Launch Mount and Base, Rocket Engines, and reprinting the Hot Staging Ring
Part 5: Printing the Black Pieces of the Orbital Launch Tower - Part 1
Part 6: Printing the Black Pieces of the Orbital Launch Tower - Part 2

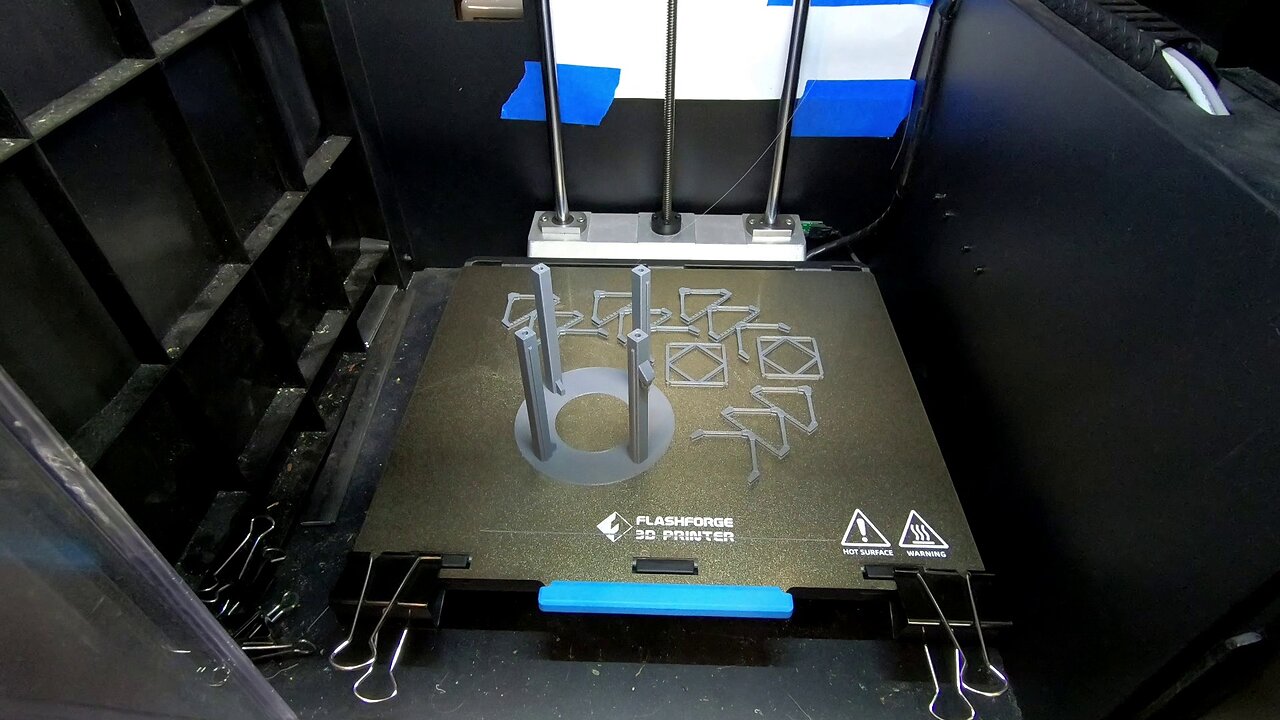

Part 7: Printing the Draw works and Gray Pieces of the Orbital Launch Tower - Part 1

Part X: Wrap up: total cost, total print and assembly time, and suggests for improvements to the design (some I plan to do myself by modifying the 3d model with editing tools).

---
