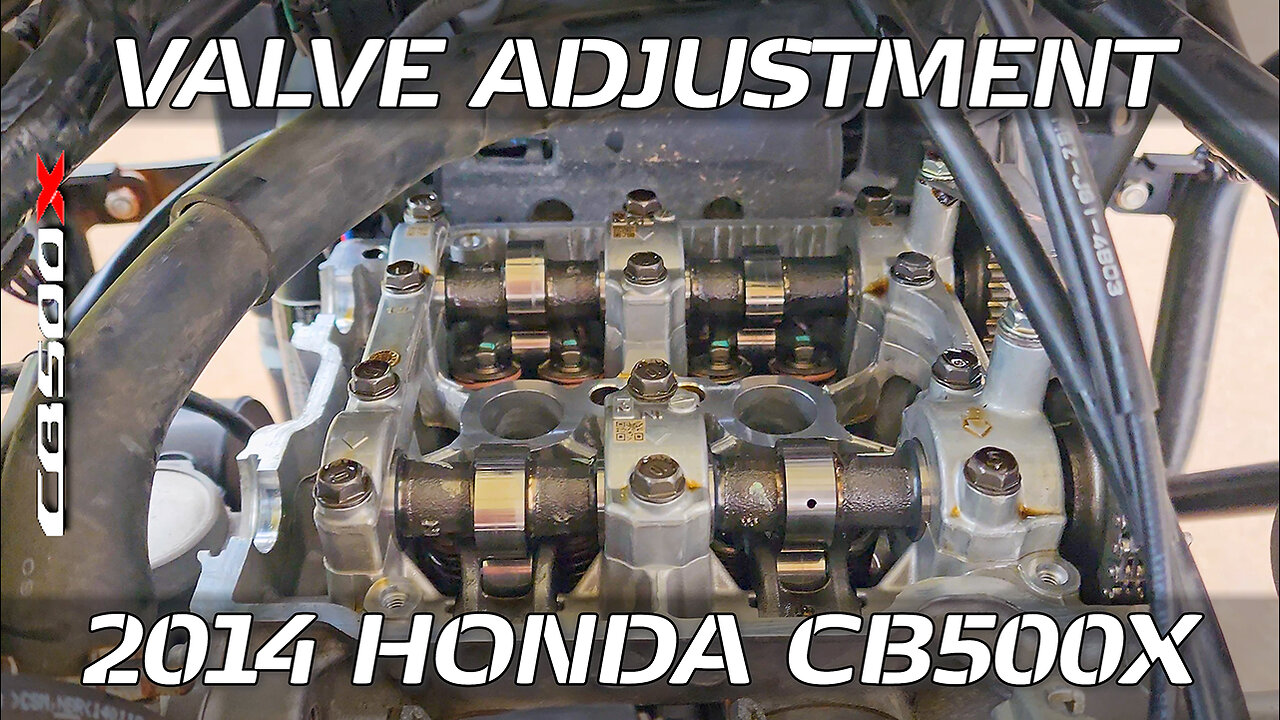

Name: 2014 Honda CB500X valve adjustment // How to replace valve shims
Uploaded: 2025-05-02T00:05:16+00:00
Duration: 16 min 42 s
Description: My trusty 2014 Honda CB500X is LONG overdue for its 16K mile valve maintenance (currently sitting at 21500). I planned to postpone this saga a bit longer, but I was already tearing half of the bike ap

6 months ago

Automotive honda cb500x honda cb500x honda cb500x valve adjustment honda cb500x valve shims honda cb500f valve adjustment honda cbr500r valve adjustment honda valve shim replacement valve clearance maintenance

My trusty 2014 Honda CB500X is LONG overdue for its 16K mile valve maintenance (currently sitting at 21500). I planned to postpone this saga a bit longer, but I was already tearing half of the bike apart to fix my broken front turn signal. So, I might as well do it now and save more headaches later. Skip around with the chapter markers below.

Products used or mentioned in this video:
Hot Cams 7.48mm valve shim kit: https://amzn.to/43TkoZ5
TUSK tapered feeler gauge set: https://amzn.to/4asF6S3
Milwaukee Inkzall fine point markers: https://amzn.to/4cPbkbJ

Time indexes:
0:00 Joining the fun already in progress
3:11 Valve cover removed, checking camshaft condition
4:23 Aligning the crankshaft timing mark and verifying camshaft positions
5:27 Shop manual specs for valves, checking existing clearances
6:53 PSA: watch out for loose metal on new feeler gauges!
7:42 Exhaust valve clearances, removing the rocker shaft to replace valve shims
10:27 Removing the old shims with a magnet
11:52 Doing math to figure the new shim thickness
12:44 Placing the new shims with a cheater tool (magnetic screwdriver)
14:16 Valve cover reinstalled, this is a LONG and tedious process!
15:48 Sandwich bag trick to avoid scuffing paint
--
