0031: Upgraded Register PCB to 4-Layers! | 16-Bit Computer From Scratch

This video was originally released on 08-Jan-2023 on YT: https://youtu.be/pWzWNNuJk7w

CircuitVerse Project Link: https://circuitverse.org/users/160845/projects/16-bit-computer-from-scratch

16-Bit Computer From Scratch Complete Playlist: https://www.youtube.com/watch?v=XH92d93l5ww&list=PLUF7WfBe0k3g9wpTtg41QP3jl5y8T1aGV

16-Bit Computer From Scratch Register Module Playlist: https://www.youtube.com/watch?v=PiZ3pYomPFE&list=PLUF7WfBe0k3h1K0GHuQcwE9RUwpX6pBFm

16-Bit Computer From Scratch KiCad Playlist: https://www.youtube.com/watch?v=3ygF3kj8vQY&list=PLUF7WfBe0k3jGLDCGYyv_KxkEMcUfhyN0

Chapters:
0:00 Intro
1:34 Update the Schematic
3:01 Setup KiCad for 4 Layer PCB
5:37 Placing the First Components
6:39 Placing the ICs
10:43 Placng the LEDs
11:18 Place the LEDs Wrong; Add Labels to the Schematic to Remove Confusion
13:34 Top Side all Placed; Placing the Passives
17:08 Placing Tracks
19:43 Different Capabilities for 4 Layer PCBs
26:21 The Most Satisfying Tracks!
28:26 3d Rendernig
29:18 Copper Fills
35:18 TODOs

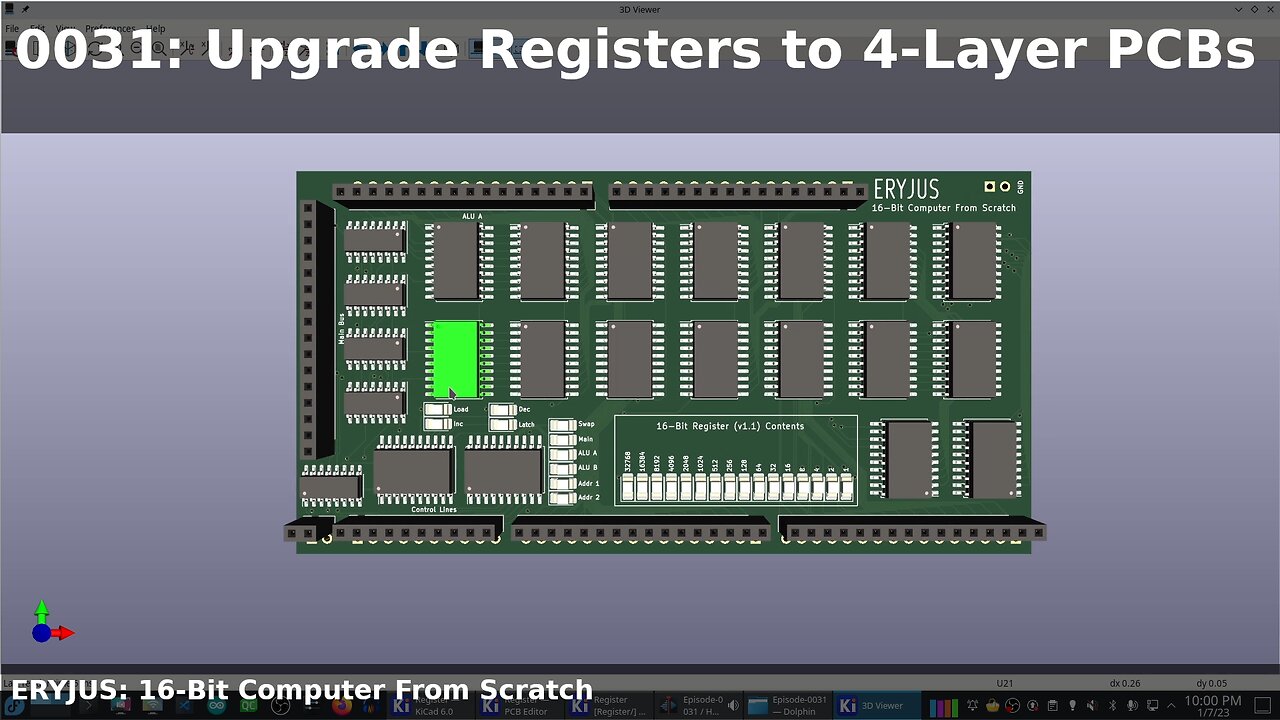

In this video I update the Register PCB schematics and completely rebuild the PBC to be a 4-layer board. This improves the manufacturing capabilities and is a complete game-changer for this PCB layout. I cannot overstate how much more I will get for the incremental costs to change to a 4-Layer board!
