0030: More Register PCB Testing | 16-Bit Computer From Scratch
This video was originally released on 06-Jan-2023 on YT: https://youtu.be/KZ4G4f27Yy4
CircuitVerse Project Link: https://circuitverse.org/users/160845/projects/16-bit-computer-from-scratch
16-Bit Computer From Scratch Complete Playlist: https://www.youtube.com/watch?v=XH92d93l5ww&list=PLUF7WfBe0k3g9wpTtg41QP3jl5y8T1aGV
Register Module BUild Complete Playlist: https://www.youtube.com/watch?v=PiZ3pYomPFE&list=PLUF7WfBe0k3h1K0GHuQcwE9RUwpX6pBFm
Chapters:
0:00 Intro
0:44 Inputs Testing
1:55 Found Another Problem!
2:50 Troubleshooting
4:12 Breaking Out the Digital Microscope
6:48 Tracing with the Logic Probe
8:48 Getting Closer...
9:04 Under the Microscope Again
9:20 Fixing the Solder Joint
10:55 Re-Testing (More Concerns?!)
11:23 No More Floating Control Lines
14:51 CircuitVerse
In this video I complete the testing of the PCB to identify and resolve the remaining problems with the board. This is in preparation for fixing the PCB layout and ordering a new set of PCBs. Spoiler Alert: I find more problems and I troubleshoot them on camera.

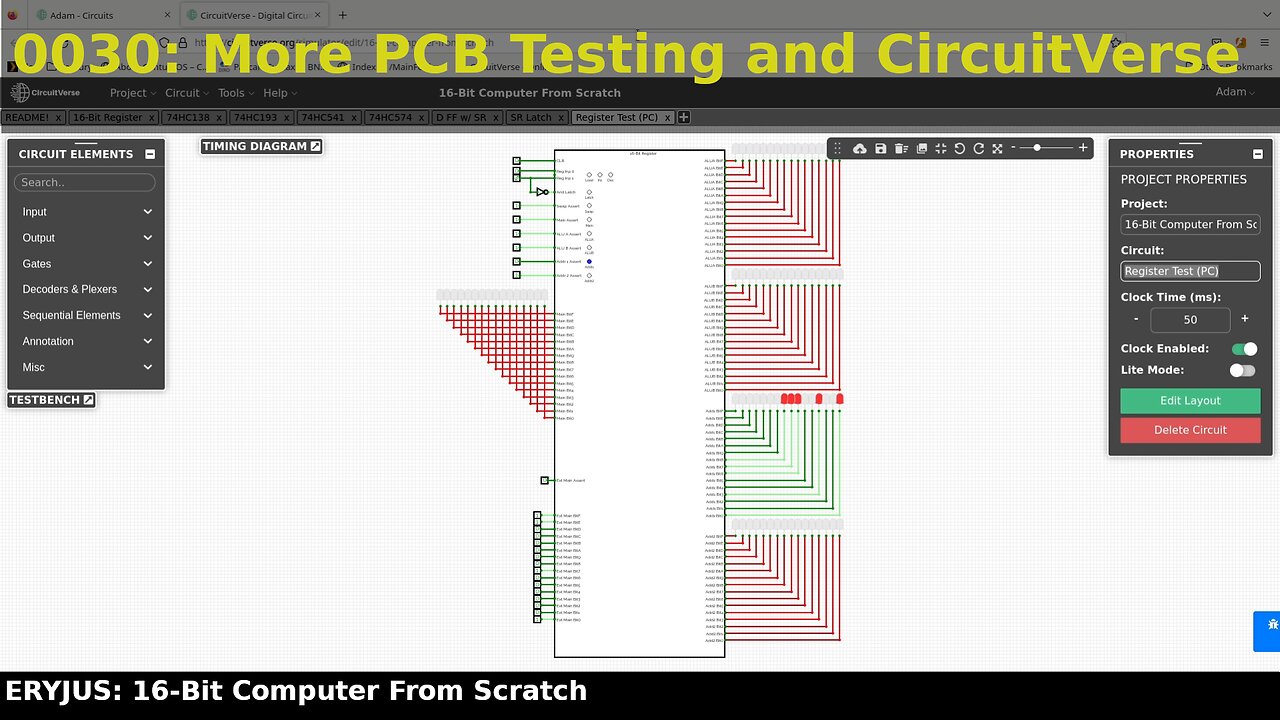

I also introduce a CircuitVerse project while will be built out in parallel with the 16-Bit Computer From Scratch. CircuitVerse is a digital simulation web site in which I am going to duplicate a much of my work as I can. It also provides a playground where you can play with the computer virtually as I build it out.
Additional Tags:
#Homebrew
#Breadboard
#PCB
#KiCad
#74LS
#IC
#SMD
#schematic
#CircuitVerse
-
