Primitive Technology Natural Draft Iron Smelt

#PrimitiveTechnology #Draft #Iron
Primitive Technology: Natural Draft Iron Smelt
Subscribe: http://bit.ly/subPT | Never miss a video! Enable ‘ALL’ Notifications!
Watch my newest content: • Newest Uploads | Primitive Technology

Follow Primitive Technology:
Wordpress: https://primitivetechnology.wordpress...
Patreon: https://patreon.com/user?u=2945881

Watch More Primitive Technology:
Newest Uploads: • Newest Uploads | Primitive Technology
Pyrotechnology: • Pyrotechnology | Primitive Technology
Shelter: • Shelter | Primitive Technology
Weapons: • Weapons | Primitive Technology
Popular Videos: • Popular Videos | Primitive Technology

Contents:
00:00 Building the furnace
04:39 Ore
5:28 Charcoal
7:15 Smelt 1 (fresh ore)
11:12 Result/processing product
13:57 Modifying furnace
16:33 Smelt 2 (recycled slag)
20:50 Result/processing product
21:40 Conclusion

About This Video:

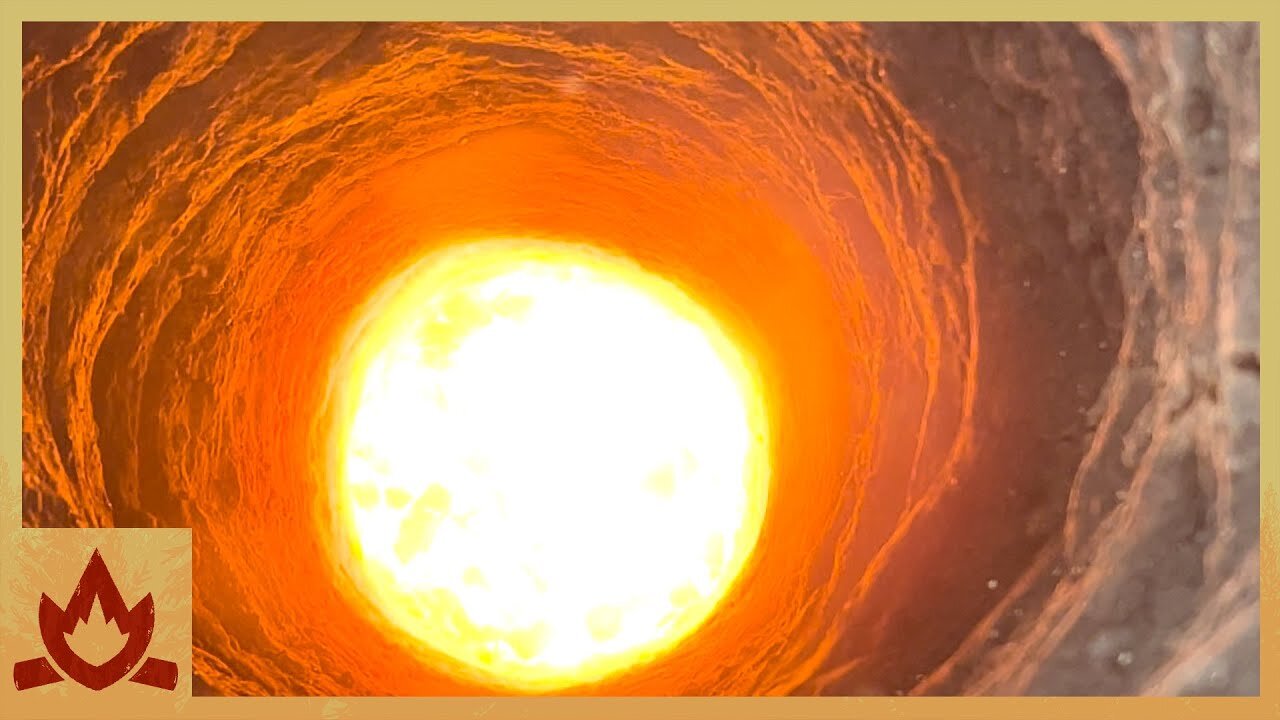

I built a natural draft furnace and smelted iron ore in it, producing a small amount of iron. A natural draft furnace is one where the draft is supplied by convection alone. This is opposed to a forced draft where bellows or fan is used to supply air flow instead. Natural draft furnaces are typically taller than forced draft furnaces to make use of the stack effect. They also often have multiple large air entries or tuyeres to help reduce resistance to air flow. Natural draft furnaces where used to smelt iron in ancient times in Europe and up to more recently in Africa where some are still standing. The lack of the need for bellows reduces labor and complexity.

The furnace was 1.5 m tall and 25 cm internal diameter with 4 tuyeres 5 cm internal diameter. Charcoal was used as a fuel and iron bacteria was used as an ore. The smelt produced about 4 g of iron prills but could probably be improved with a longer preheat and a higher charcoal to or ratio. A second smelt was run with slag from previous smelts using 8 tuyeres this time to increase air flow. But it made only about a gram of iron, possibly due to the slag not having much iron left in it.

Natural draft furnaces do not rely on bellows or blowers and so labor is significantly decreased during a smelt. They are also simpler to operate with less components to break down or maintain. However, I've read that they use more charcoal per iron made, possibly because part of the energy from the fuel goes into supplying the air flow through the furnace. With further experimentation, I believe that my natural draft furnaces can make better yields of iron.
