2,000-amp Disconnect Switch - Fused @ 2,000A - 600V AC, 3PH - Input/Output Lugs - N3R

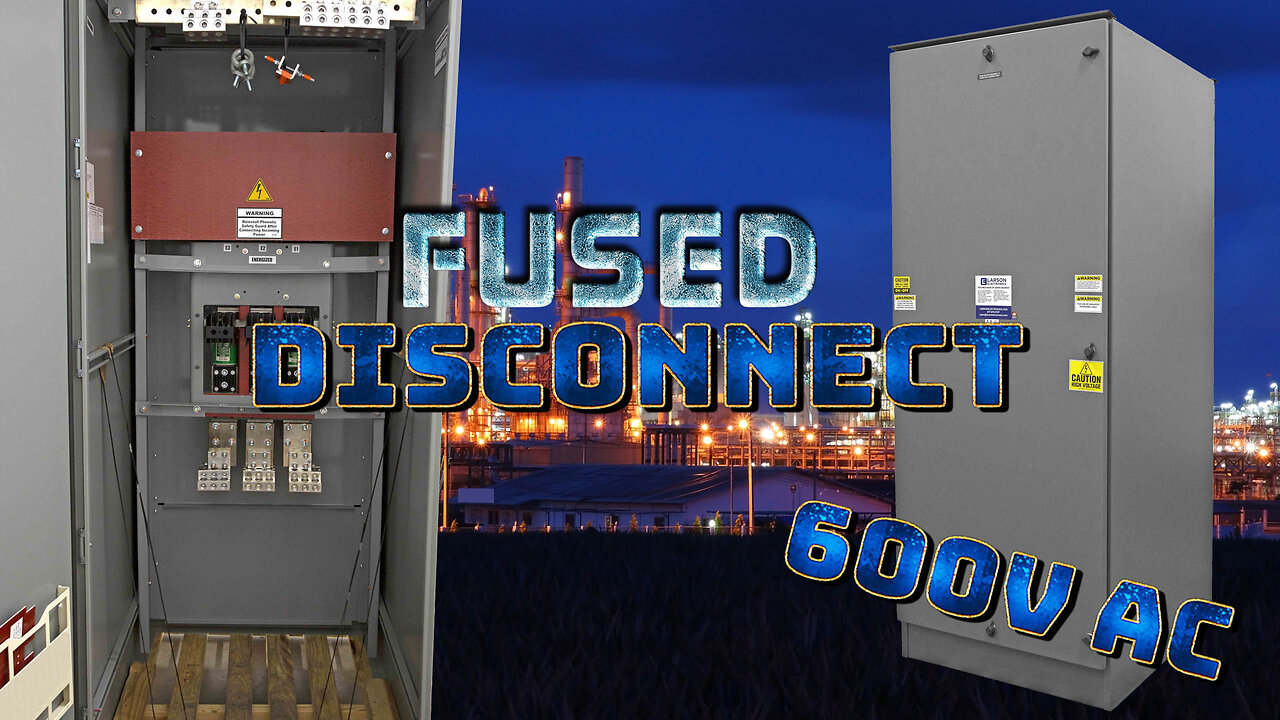

The PDU-MDS-600V.3P-2000A-3X2000A-M1 from Larson Electronics is a Disconnect Switch that is an accessory for power distribution systems. This 2,000-amp rated power distribution accessory acts as an overload breaker that will protect operators from overloading a transformer. Equipped with an open-bottom configuration, the PDU-MDS-600V.3P-2000A-3X2000A-M1 is encased in a NEMA 3R steel enclosure.
The PDU-MDS-600V.3P-2000A-3X2000A-M1 AC disconnect switch is rated for 2,000 amps, features a fusible interior (fused at 2,000 amps) and a safety disconnect switch. There are four 600 MCM mechanical lugs per phase located on the input and output side, which accept 600 MCM cables. This power distribution accessory is constructed of steel and has a 3-pole 3-wire configuration along with a three-phase 600V AC voltage rating.
