Jeep Cherokee XJ modified Stock Bumper

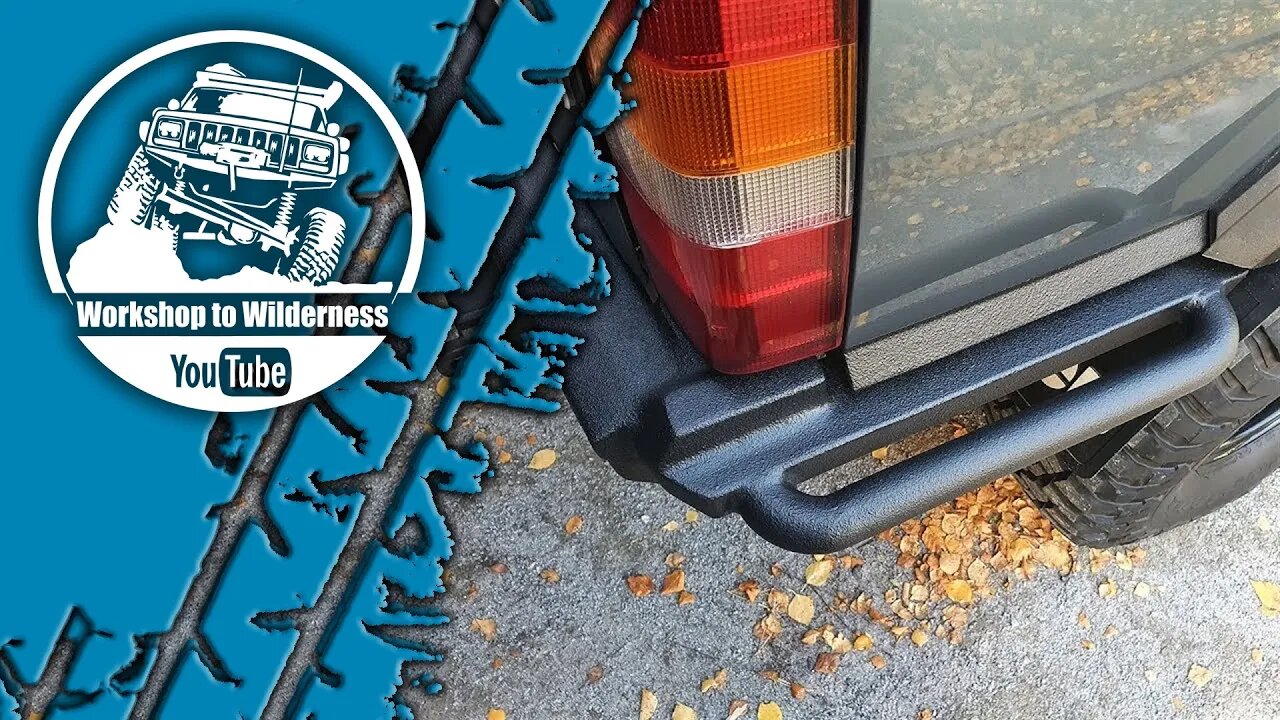

Its time to remount the modified stock XJ bumper now that the rear tube fenders and corrosion protection are finished. I removed the rear bumper to while cleaning back the old undercoat to reapply the new stuff. While it was off I decided to strip it back and weld up some of the damage that its taken over the past three years. It also got a fresh coat of raptor liner paint.
In this video I mount the bumper but whilst doing that I show how the rear Tie In Brackets work in the back of the frame rail alongside the rear frame stiffeners, tire carrier tow bar and bumper mounts.
This main purpose of the tie in brackets are to replace the factory nut strip with something far more capable of taking the weight of a heavier bumper/tire carrier along with a larger aftermarket spare tire. Adding in a rear frame stiffener will also drastically help with this but you must stiffen the whole frame and not only the back.
Thanks again for watching.
MikeShow more

Unsponsored links below -
If you have not got access to a welder check below.

For those of you in the UK I found a prefabbed kit - https://www.ebay.co.uk/itm/Jeep-xj-rear-bumper-reinforcement-brackets/124464683275?hash=item1cfaac590b:g:tpUAAOSwwSFfxM9I

If your in the USA - https://www.ebay.com/itm/Fits-1986-2001-Jeep-Cherokee-XJ-Rear-Bumper-Brackets-DIY-Fabrication-Ver-2-/163691598618

Support me on Patreon - https://www.patreon.com/WorkshopWildernessAdventures
Check out Amazon USA - https://www.amazon.com/shop/mcqbushcraft?listId=1S3Z2JAVD999B&ref=idea_share_inf
Follow me on Instagram - https://www.instagram.com/workshopwildernessadventures/
Follow me on Facebook - https://www.facebook.com/Workshop-Wilderness-Adventures-2127584970825155

Jeep Spec:
1999 Jeep Cherokee XJ 2.5TD RHD.
35x12.50r15 BFG KM3's with 15x8 3.75" backspacing (-19 offset).
Lift Front - RC 4.5" Coils and N2 Shocks (2" Coil Spacer).
Front Shock Bar Pin Eliminator.
Dana 30 High Pinion with Artec Industries Lower Control Arm Mounts with modified upper mount and modified Track Bar mount.
Front RC Control Arm Drop Bracket.
Ruff Stuff Short Arm Single Himes.
RC Extended Sway Bar Links.
Dana 30 Rock Crusher Diff Cover.
Ruff Stuff One Ton OTK Steering.
6" Lift Drop Pitman Arm.
Ruff Stuff Front and Center Frame Stiffeners.
Rear DIY Frame Stiffener and Rear Frame Tie in Kit.
6" x 2" Box Rocker replacement with Tube Slider.
Modified Factory Bumper with Side Sliders.
Rear Tow Hitch Tire Carrier that bolts into Rear Frame Tie in Kit.
Modified upper Shock Crossmember for Rear Shocks
Rear Axle Chrysler 8.25 29 Spline with modified High Clearance Shock Mounts.
Rear Shocks 6.5" Trailmasters.
Rear Leaf Springs 4.5" Trailmasters with two RC Leaf Springs from a 4.5" kit.
Rear RC Shackle Relocation Bracket.
Stainless Steel Braided Brake Lines front and back.
Warrior 9500lb Winch.
