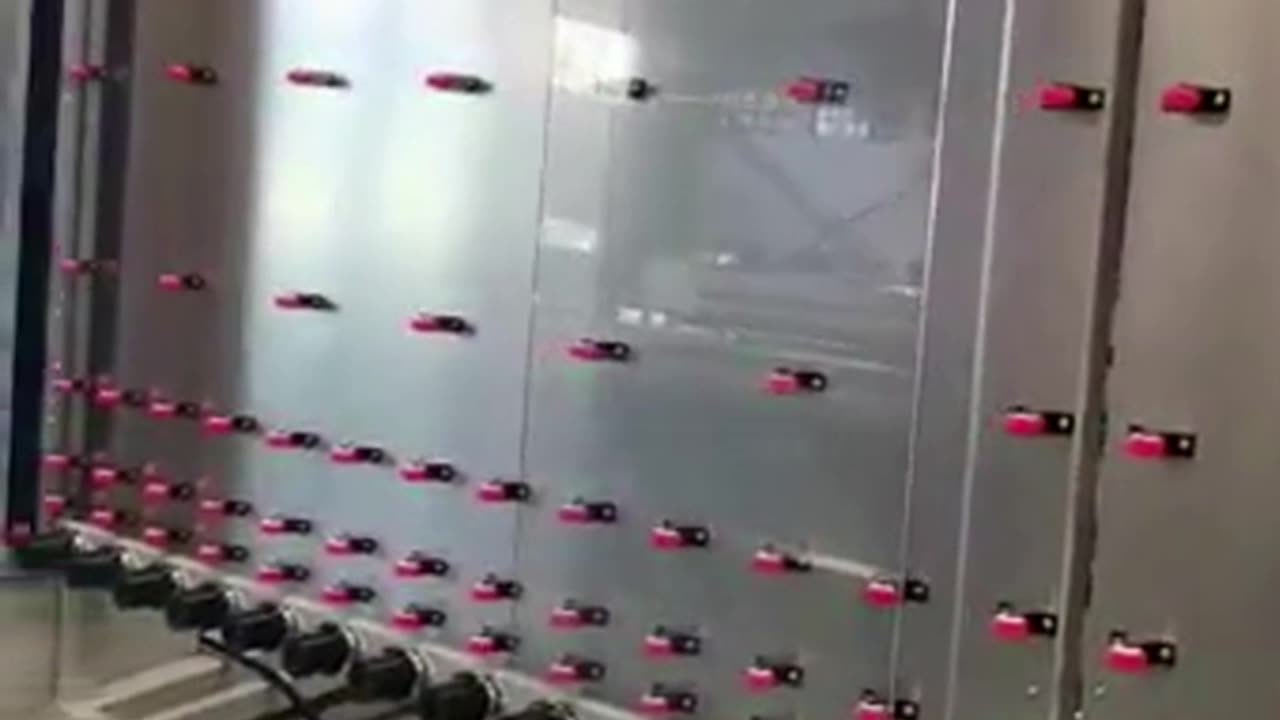

vertical glass washing machine Glass Washing Glass Machine

1. The machine adopts the world's leading technology from Italy, washing section and metal plate contacted with water are made of stainless steel. Washing section is made of welded thickened stainless-steel material, which has high strength and no distortion. Top of the machine is made of stainless-steel panel which added 8mm steel panel. Bottom of the machine is 5mm stainless steel panels; Side and middle separate panel is 2mm stainless steel panels; metal plates of other parts are painted with top-grade machine paint or powder coating. The machine can be applied for connecting with single edger line, vertical CNC working center, vertical drilling machine and other equipment.
1.2 Low-e glass detecting system(adopt Autonics from Korea ),it can automatically recognize the pros and cons side of coated glass, two hard brushes can be automatically back to avoid the coating side get damage. (This function is an option, not standard).
1.3 The machine has three pairs of brushes: six pcs Ø160mm high temperature resistant brush + four times spray, it makes glass clean and the speed fast. Tow hard brushes can be lift by air cylinder of Low-e function.
1.4The machine with stainless steel spring which can automatically adjust glass thickness from 3mm to 12mm.
1.5 Parts and screws contacted with water in the washing section are made of stainless steel, brass, water-proof aluminum, nylon and other materials, which will not be rust for long time and easy for maintenance.
1.6 Part of gear drive is connected in key type, which will not be in displacement for long time. (some factories used jack screw fixed which is not stable).
