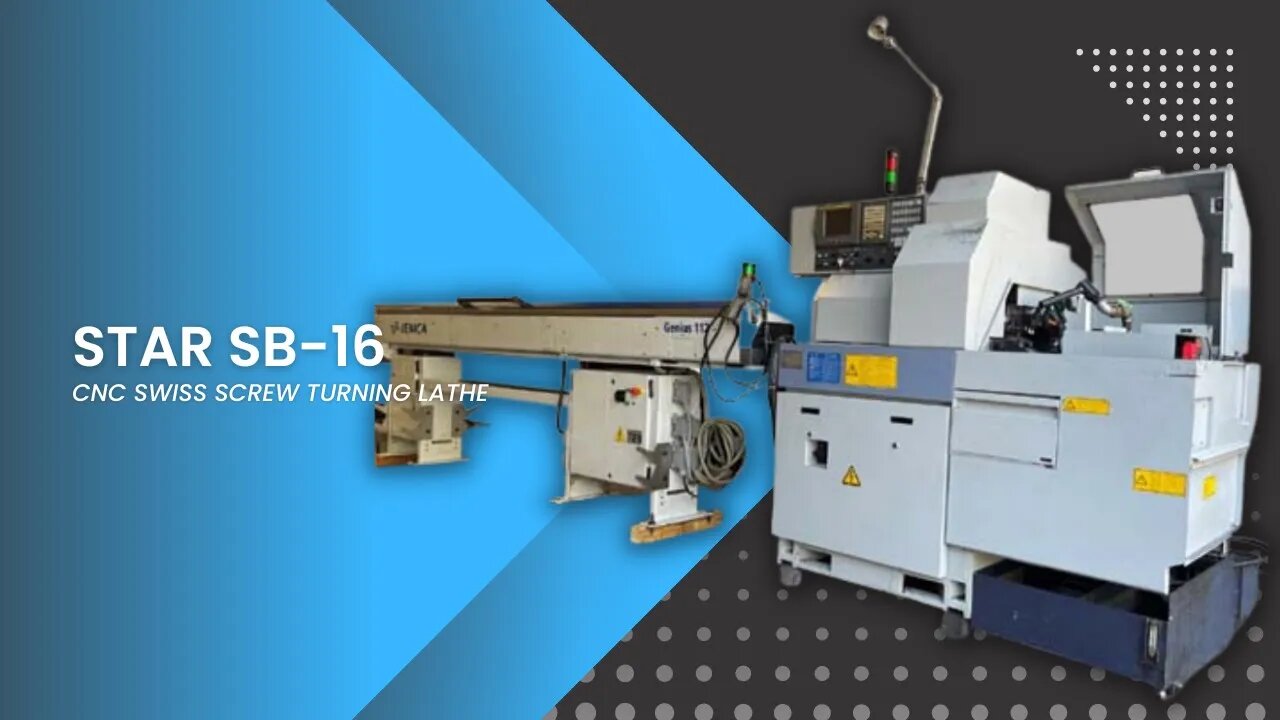

STAR SB-16 CNC SWISS SCREW TURNING LATHE SKU 2344 – MachineStation
Hello, thanks for checking this STAR SB-16 CNC SWISS SCREW TURNING LATHE Video.
For Pictures and Specifications 👉 https://www.machinestation.us/machines-for-sale/used-cnc-machines/star-sb-16-cnc-swiss-screw-turning-lathe/
We Sell New & Pre-Owned Metal Cutting & Forming CNC Machines. We have hundreds of quality used CNC machinery in stock at our locations in Houston, Texas I Byron, Illinois I Lake Elsinore, California I New Delhi, India I Mexicali, Mexico 👉 https://www.machinestation.us/locations/
Please call us at 909-919-9600 or check our complete inventory at http://www.MachineStation.us
We are always in market to buy surplus machinery for cash 💰💰 from one machine to complete manufacturing facility. Click 👉 https://www.machinestation.us/sell-machine/
⭐⭐⭐ For Special Offers, Follow MachineStation ⭐⭐⭐
🔗 Facebook: https://www.facebook.com/MachineStation
🔗 Twitter: https://twitter.com/MachineStation
🔗 Instagram: https://www.instagram.com/machinestation/
🔗 Linkedin: https://www.linkedin.com/company/machinestationus/mycompany/
🔗 Pinterest: https://www.pinterest.com/machinestation/
🔗 Pre-Owned Inventory: https://www.machinestation.us/used-machines/
*All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final.*
SKU: 2344
Make: STAR
Model: SB16
Serial: 1912 (094)
Condition: Very Good
Equipped With:
Fanuc 18i-TB CNC Control
Comes with IEMCA Genius 112 Bar Feeder
Full C Axis and Live Tools Capable
Long Parts Capable
Main & Back Spindle Synchronization
High Speed Rapid Travers: 741 IPM
High Speed Program Processing
Absolute Position Detection
Automatic Lubrication System
Coolant Tank
Books and Manuals
Standard Tools:
Turning Tools: 6
Stationary Tools Spindle: 4
Max Drilling Capability: 25/64″ (10mm)
Max Tapping Capability: M8 x P1.25
Die Cutting Capability: M8 x P1.25
Spindle:
Main Spindle Index: 0.01 Degree (C-axis control)
Main Spindle Bore: 5/12″ (16 mm)
Main Spindle Speed: 10,000 RPM
Back Spindle Motor: 3.7 kw
Back Spindle Index: 1 Degree
Back Spindle Speed: 8000 RPM
Back Spindle Motor: 1 kw
Capacity:
Max Turning Diameter: 5/12″ (16 mm)
Max Turning Length: 8″ (205 mm)
Max Turning Length with Gripping Unit: 6.3/19″ (155 mm)
Max Bar Capacity: 5/12″ (16 mm)
Tool Capacity: 12
Power Driven Tools Attachment:
Power Driven Tools: 2
Max Front Drilling: 15/64″ (6 mm)
Max Front Tapping: M6 x P1.0
Max Front Milling: 15/64″ (6 mm)
Driven Tool Speed: 5000 RPM
Driven Tool Motor: 0.4 kw
General:
Power Source: AC 220 V/ Three Phase/ 60 Hz
Overall Dimensions: 74″ x 42″ x 70″ High without Bar feeder
Weight: 3638 lbs Approx.
-
