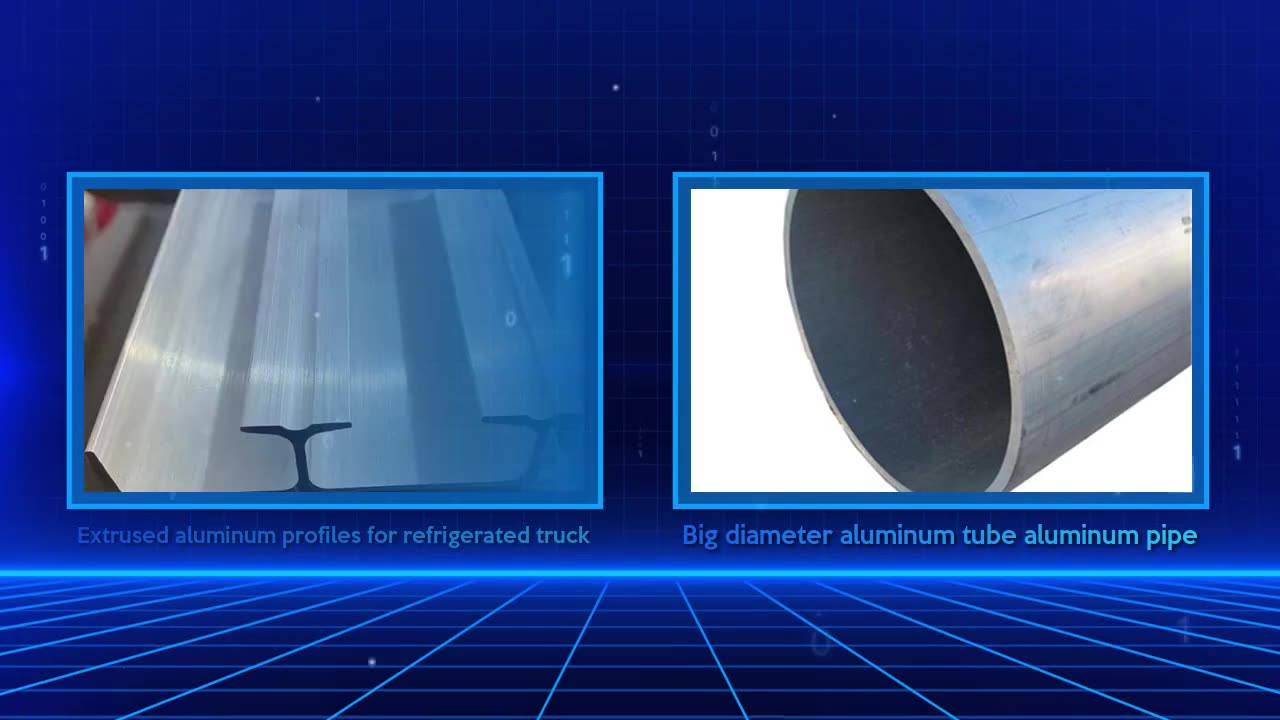

Extrused aluminum Supplier & manufacturers |#truck #refrigerated truck

“Shandong Huifeng aluminium Co., LTD”,provide full range services of aluminum extrusion profiles including: extrusion, anodizing, machining and PVDF painting .have a wide range of commercial alloys, 2A12, 2014, 2014A, 2017A, 2024, 3003, 5A02, 5083, 6005A, 6060, 6061, 6063, 6082, 6463, 7020, 7075 etc ,Temper H111 O T3 T351 T42 T5 T6 T651Show more

Specification of aluminum profile
Alloy: 2A12, 2014, 2014A, 2017A, 2024, 3003, 5083, 6005A, 6060, 6061, 6063, 6063A, 6082, 6463,
7020, 7075 etc
Temper: O H112 T3 T351 T4 T42 T5 T6 T651
Shape: As customer’s drawing
Length: 500-6000mm
Surface treatment Mill finish, anodized, PVDF Painting, Polishing
Characteristic
Corrosion resistance:
The density of aluminum profile is only 2.7g/cm3, which is about 1/3 of the density of steel, copper or brass (7.83g/cm3, 8.93g/cm3, respectively). Under most environmental conditions, including air, water (or salt water), petrochemicals and many chemical systems, aluminum can show excellent corrosion resistance.

Conductivity
Aluminum profile is often selected because of its excellent electrical conductivity. On the basis of equal weight, the conductivity of aluminum is close to 1/2 of that of copper.

Thermal conductivity
The thermal conductivity of aluminum alloy is about 50-60% of copper, which is beneficial to the manufacture of heat exchangers, evaporators, heating appliances, cooking utensils, and automobile cylinder heads and radiators.

Non-ferromagnetic
Aluminum profiles are non-ferromagnetic, which is an important feature for the electrical and electronic industries. Aluminum profiles are not spontaneously combustible, which is important for applications involving handling or contact with flammable and explosive materials.
Machinability

The workability of the aluminum profile is excellent. In various deformed aluminum alloys and cast aluminum alloys, as well as in the various states that these alloys have after being produced, the machining characteristics vary considerably, which requires special machine tools or technology.
Formability

The specific tensile strength, yield strength, ductility and corresponding work hardening rate dominate the change in allowable deformation.

Recyclability
Aluminum has extremely high recyclability, and the characteristics of recycled aluminum are almost indistinguishable from primary aluminum.

classification
By purpose
1. Architectural aluminum profiles (divided into two types of doors and windows and curtain walls).
2. Aluminum profile of radiator.
3. General industrial aluminum profiles: Mainly used for industrial production and manufacturing, such as automated machinery and equipment, the skeleton of the enclosure, and each company customizes the mold according to their own mechanical equipment requirements, such as assembly line conveyor belts, elevators, dispensers, Testing equipment, shelves, etc., are mostly used in the electronic machinery industry and clean rooms.
4. Aluminum alloy profile for rail vehicle structure: mainly used in the manufacture of rail vehicle body.
5. Mounting aluminum profiles to make aluminum alloy picture frames, mounting various exhibition and decorative paintings.

According to alloy composition
It can be divided into alloy grade aluminum profiles such as 1024, 2011, 6063, 6061, 6082, 7075, among which 6 series is the most common. The difference between different grades is that the proportions of various metal components are different, except for the commonly used aluminum profiles for doors and windows For example, in addition to architectural aluminum profiles such as 60 series, 70 series, 80 series, 90 series, curtain wall series, industrial aluminum profiles do not have a clear model distinction, and most manufacturers process them according to the actual drawings of customers.
According to surface treatment
1. Anodized aluminum
2. Electrophoresis coated aluminum
3. Powder sprayed aluminum
4. Wood grain transfer aluminum
5. Fluorocarbon sprayed aluminum
6. Polished aluminum
