Piggyback Mechanical Advantage: Load Cell Tests

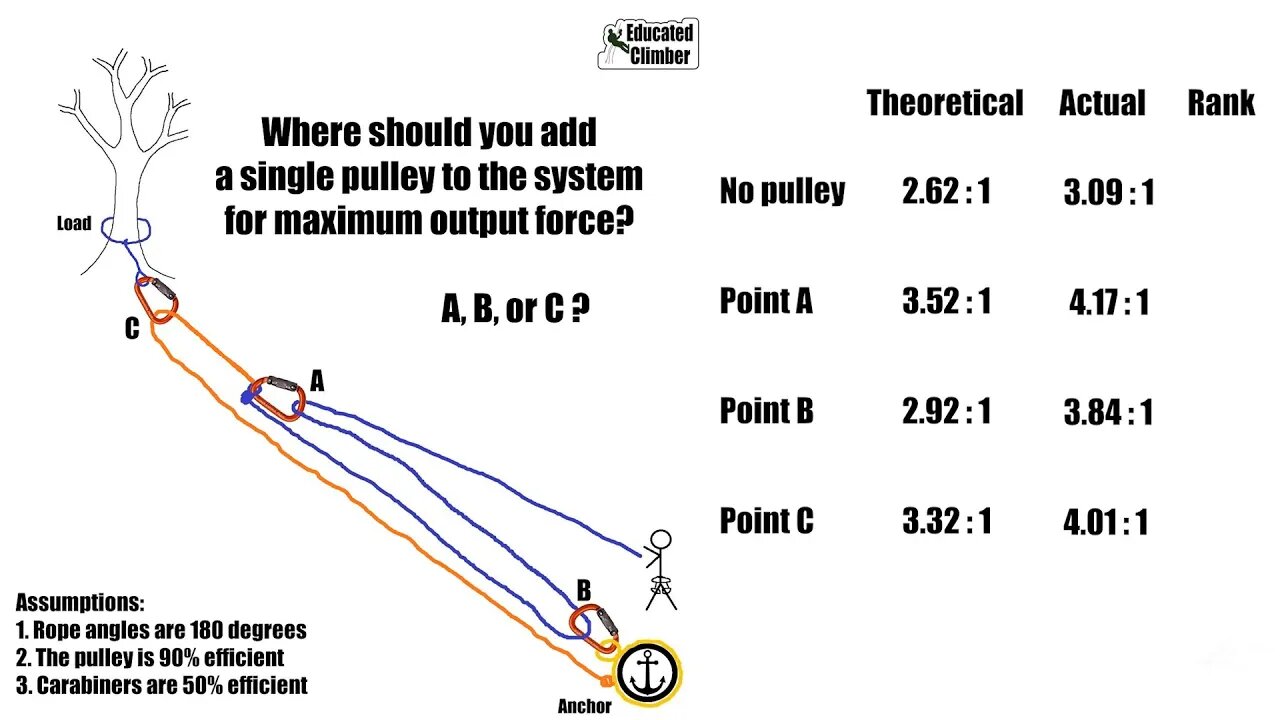

In this video I tested a 3:1 pulling on a 2:1 and a 2:1 pulling on a 3:1 to see how the efficiency of pulleys impacts our final output force. I wanted to test how closely a real-life pull test matches up to the predictions of a force diagram on paper. This is a follow-up to my other video "Where Should You Add Pulleys to a Trucker's Hitch". It seems that the question of where to add pulleys is not as simple as saying "closest to the input", but rather, "closest to the input of the highest multiplier in the system", which is an intriguing result. I hope this gives you some things to think about...
"We are all apprentices in a craft where no one ever becomes a master." - Ernest Hemingway
Make sure you subscribe, and hit the bell to get notified when I upload new videos.
Follow Educated Climber on Instagram: https://www.instagram.com/educatedclimber/
If you are liking Educated Climber and getting value out of this, please tell a friend or 3.
Climb High, Work Smart, Read More.
- Patrick
-
