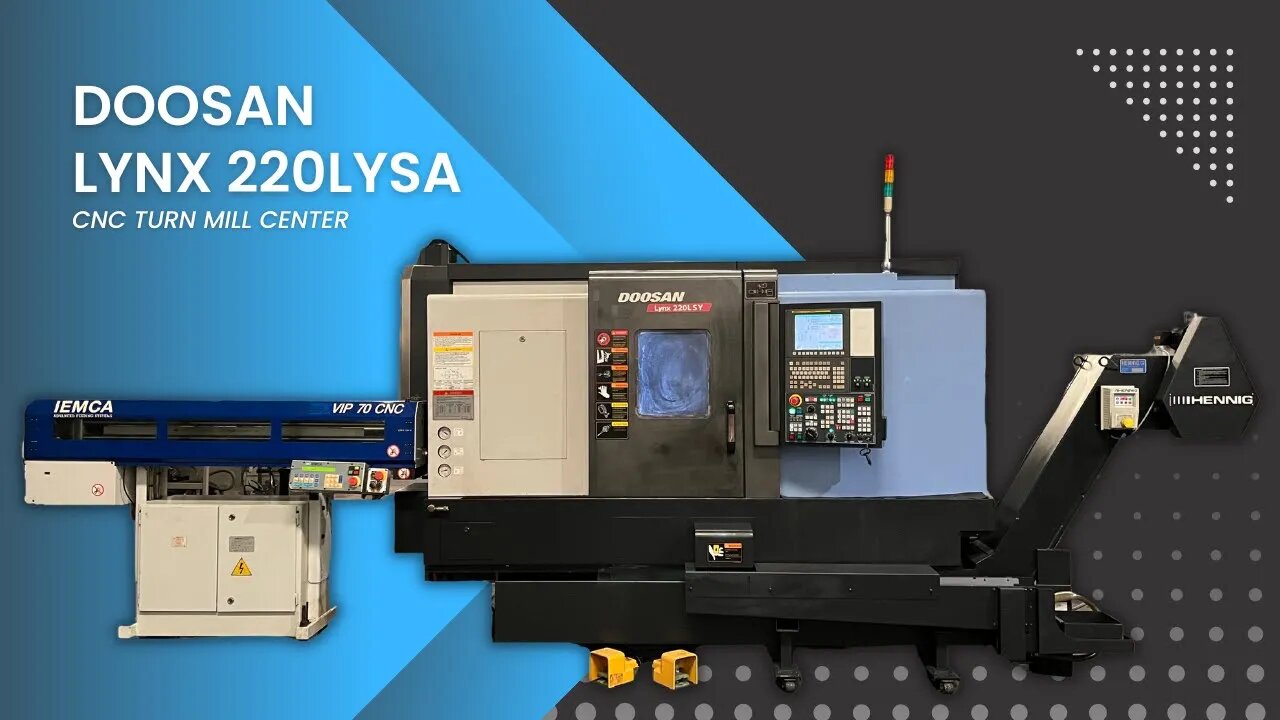

DOOSAN LYNX 220LYSA CNC TURN MILL CENTER SKU 2409 – MachineStation

Hello, thanks for checking this DOOSAN LYNX 220LYSA CNC TURN MILL CENTER Video.Show more

For Pictures and Specifications 👉 https://www.machinestation.us/machines-for-sale/used-cnc-machines/cnc-lathes-turning-centers/doosan-lynx-220lysa-cnc-turn-mill-center/#

We Sell New & Pre-Owned Metal Cutting & Forming CNC Machines. We have hundreds of quality used CNC machinery in stock at our locations in Houston, Texas I Byron, Illinois I Lake Elsinore, California I New Delhi, India I Mexicali, Mexico 👉 https://www.machinestation.us/locations/

Please call us at 909-919-9600 or check our complete inventory at http://www.MachineStation.us

We are always in market to buy surplus machinery for cash 💰💰 from one machine to complete manufacturing facility. Click 👉 https://www.machinestation.us/sell-machine/

⭐⭐⭐ For Special Offers, Follow MachineStation ⭐⭐⭐
🔗 Facebook: https://www.facebook.com/MachineStation
🔗 Twitter: https://twitter.com/MachineStation
🔗 Instagram: https://www.instagram.com/machinestation/
🔗 Linkedin: https://www.linkedin.com/company/machinestationus/mycompany/
🔗 Pinterest: https://www.pinterest.com/machinestation/
🔗 Pre-Owned Inventory: https://www.machinestation.us/used-machines/

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
Make: Doosan
Model: Lynx 220LYSA
SKU 2409
Year: 2008/2009
Condition: Excellent
Cutting Hours: 14976

Equipped With:
Doosan-Fanuc i Series CNC Control
12 Station Live Tool Turret with Tool Holders
Y Axis Capability
IEMCA Automatic Bar Feeder
Sub Spindle
6″ 3-Jaw Chucks on Both Spindles
Servo Controlled Full C-Axis on Both Spindles
Both Spindle Synchronization
High Pressure Coolant System
Tool Presetter
Foot Switches
Chip Conveyor
Coolant Tank
Books and Manuals

Capacity:
Max Turning Diameter : 11.8″
Max Swing Over Bed : 23.6″
Max Swing Over Saddle : 15.7″
Max Turning Length: 20.1″
Max Bar Capacity : 2″
Distance Between Spindles: 22″

Travel:
X Axis Travel : 8.1″
Y Axis Travel : 4.1″ (+/-2.1″)
Z1 Axis Travel : 22″
B Axis Travel : 20″ (Sub Spindle)
C Axis: 360° (0.001°) Both Spindle
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Y Axis: 394 IPM
Rapid Traverse Z Axis: 1417 IPM
Rapid Traverse B Axis: 787 IPM

Spindle:
Main Spindle Nose: A2-5
Sub Spindle Nose: A2-5
Main Spindle Bore: 2.4″
Sub Spindle Bore: 1.7″
Main Spindle Speed: 6000 RPM
Sub Spindle Speed: 6000 RPM
Main Spindle Motor: 20 HP
Sub Spindle Motor: 7.5 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.11 Second
Rotary Tools Speed: 6000 RPM
Rotary Tool Motor: 5 HP

General:
Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 33.66 kva
Machine Dimensions: 112″ x 68″ x 76″ High
Machine Weight: 8,600 lbs Approx.
