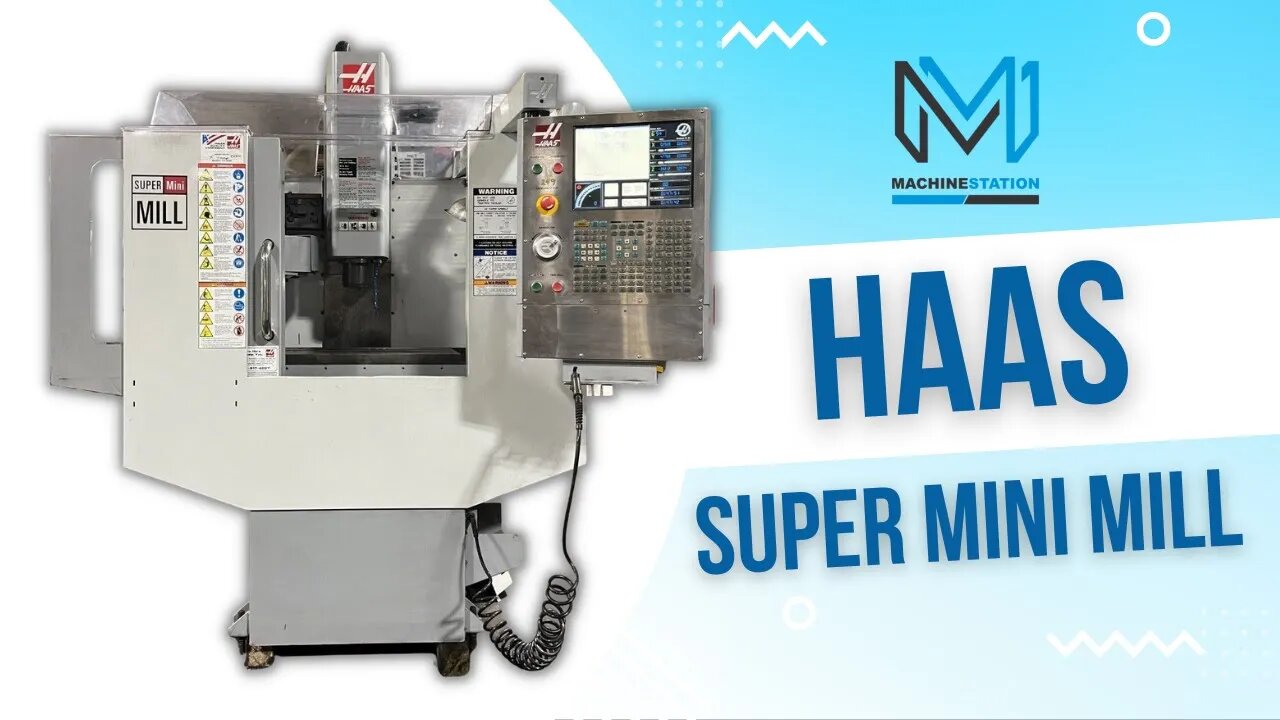

HAAS SUPER MINI MILL CNC VERTICAL MACHINING CENTER SKU 2314 – MachineStation

Hello, Thanks for checking this HAAS SUPER MINI MILL CNC VERTICAL MACHINING CENTER Video.Show more

For Pictures and Specifications 👉 https://machinestation.us/product/haas-super-mini-mill-cnc-vertical-machining-center/

We Sell New & Pre-Owned Metal Cutting & Forming CNC Machines. We have hundreds of quality used CNC machinery in stock at our locations in Houston, Texas I Byron, Illinois I Lake Elsinore, California I New Delhi, India I Mexicali, Mexico 👉 https://www.machinestation.us/locations/

Please call us at 909-919-9600 or check our complete inventory at http://www.MachineStation.us

We are always in market to buy surplus machinery for cash 💰💰 from one machine to complete manufacturing facility. Click 👉 https://www.machinestation.us/sell-machine/

#CNCMachines #MoriSeiki #UsedCNCLathe ⭐⭐⭐ For Special Offers, Follow MachineStation ⭐⭐⭐
🔗 Facebook: https://www.facebook.com/MachineStation
🔗 Twitter: https://twitter.com/MachineStation
🔗 Instagram: https://www.instagram.com/machinestation/
🔗 Linkedin: https://www.linkedin.com/company/machinestationus/mycompany/
🔗 Pinterest: https://www.pinterest.com/machinestation/
🔗 Pre-Owned Inventory: https://www.machinestation.us/used-machines/

SKU # 2314
Make: HAAS
Model No.: SUPER MINI MILL
Serial No. 1051690
YEAR: 2006
Condition: Very Good

All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final.

HAAS SUPER MINI MILL CNC Equipped With:
Haas CNC Control
10000 RPM Spindle
10 Station Automatic Umbrella Type Tool Changer
High Speed Machining
USB Drive
Expanded Memory
Rigid Tapping
Spindle Orientation
Programmable Coolant
Telescopic Way Covers
Chip Conveyor

HAAS SUPER MINI MILL CNC Specifications:

X-Axis: 16″
Y-Axis: 12″
Z-Axis: 10″
Rapid Traverse Rates: 1200 Inch Per Minute
Cutting Feed Rates: 833 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 14″

Spindle:
Taper Size: 40
Speed Range: 10,000 RPM
Spindle Power: 15 HP
Vector Dual Drive Max Torque: ft-lb @ RPM

Table:
Length: 36.0″
Width: 12.0″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 500 lbs

Automatic Tool Changer:
Capacity: 10 Station Umbrella Type
Max Tool Weight: 12 lbs
Max Tool Dia: 3.5″
Max Tool Length: 11″
Tool Changing Time: 2.8 Seconds

General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 90″ x 64″ x 100″ High
Weight: 4000 lbs

“No Charges for loading at list Price”
