Balluff BN508-105-z015 In Studio5000 with Add-On Instruction
With Balluff themselves having limited information about the BN508-105-z015 IO-link module, I thought what better time to help than now so I made this video to share the resources that I found.
Please watch to full video to make sure you understand the small details, from my findings of using Balluff, every bit helps.
Make an account with https://www.balluff.com/
Once you sign up then check your email & verify your account.
Get EDS File:
https://www.balluff.com/en-us/products/BNI006A
Get EDS File:
https://www.balluff.com/en-us/products/BNI007C
Here is the AOI sign-up:
https://us.balluff.com/en-us/aoi-agreement
Then you need to download the AOI for the I/O block you are using.

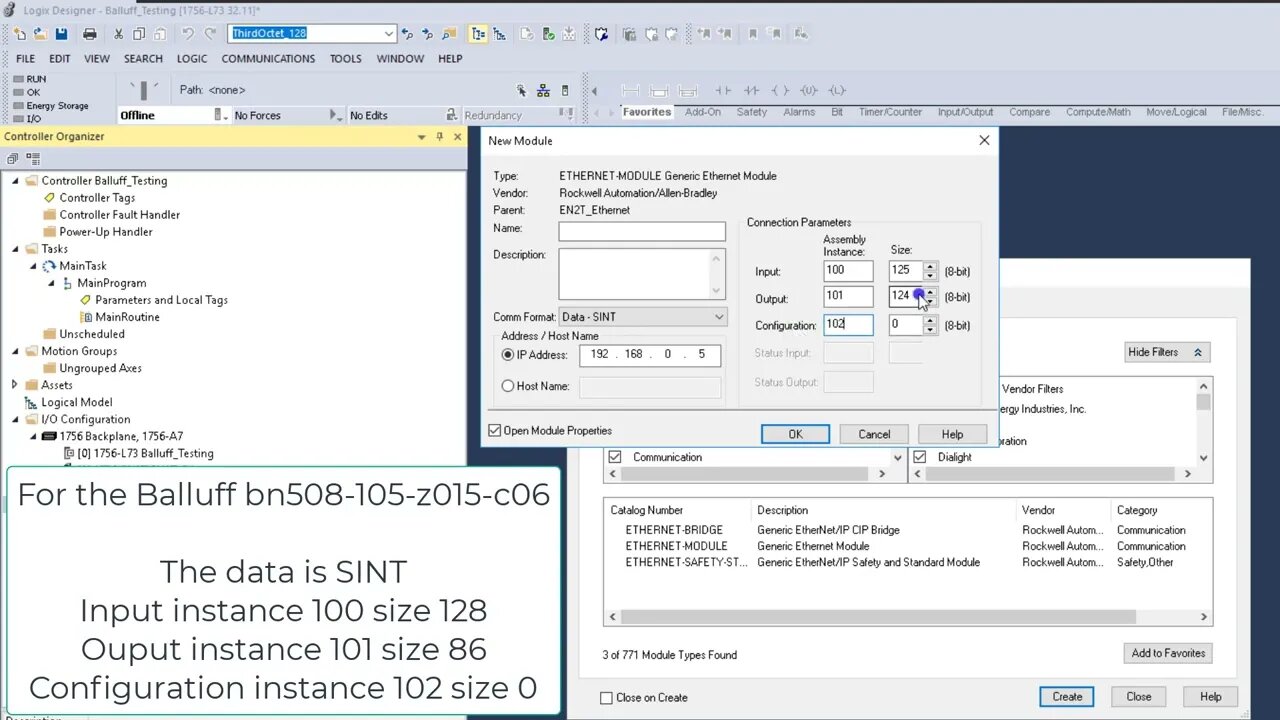

0:00 Setting up a Generic Ethernet Module
2:55 Looking at the Controller tags
3:30 Adding BN508-105-z015 module using the EDS file
4:50 Important Balluff set up information
5:22 Difference in Generic setup & the EDS file setup
6:20 Registering the EDS file in Studio 5000
7:40 Where to find the EDS field on the Balluff website
7:55 Easy search on Balluff's website
10:20 Getting the Add-On Instruction from Balluff
14:55 The Balluff Add-On Instruction PDF
15:20 Adding the Add-On Instruction to the PLC program
16:20 Programming the Balluff Add-On instruction
19:25 Setting the active ports along with other changes
22:00 Closing statements
