Induction motor NVR switch and starting circuit

4 years ago
1

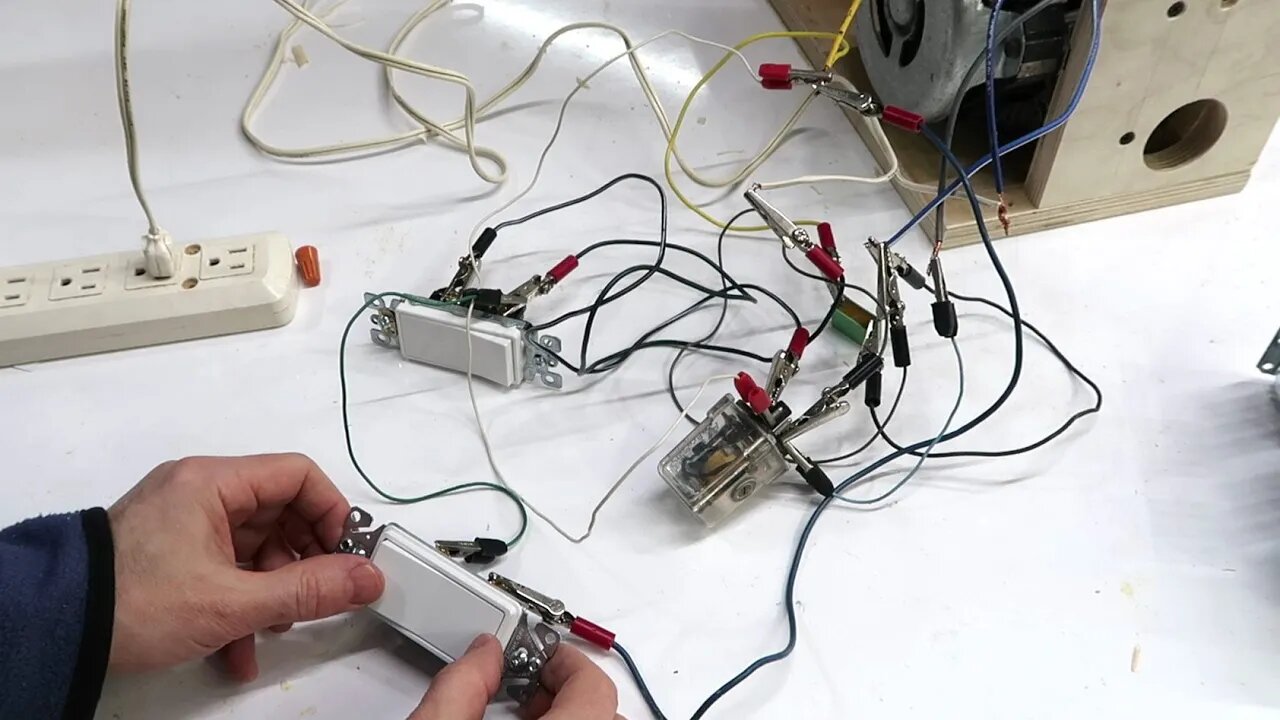

Building a circuit to engage the starter winding of an induction motor at startup. Also acts as an NVR (no voltage reset) switch and automatically cuts out if the motor stalls. Using one AC relay and two light switches.

http://woodgears.ca/motors/starting.html
This switch is for my 1.5"x48" belt sander
http://woodgears.ca/strip_sander/xl.html
