Laser Cutter Engraver Air Assist Box GRBL A3 Pin M8 on M9 off MKS DLC 2.0

3 years ago
2

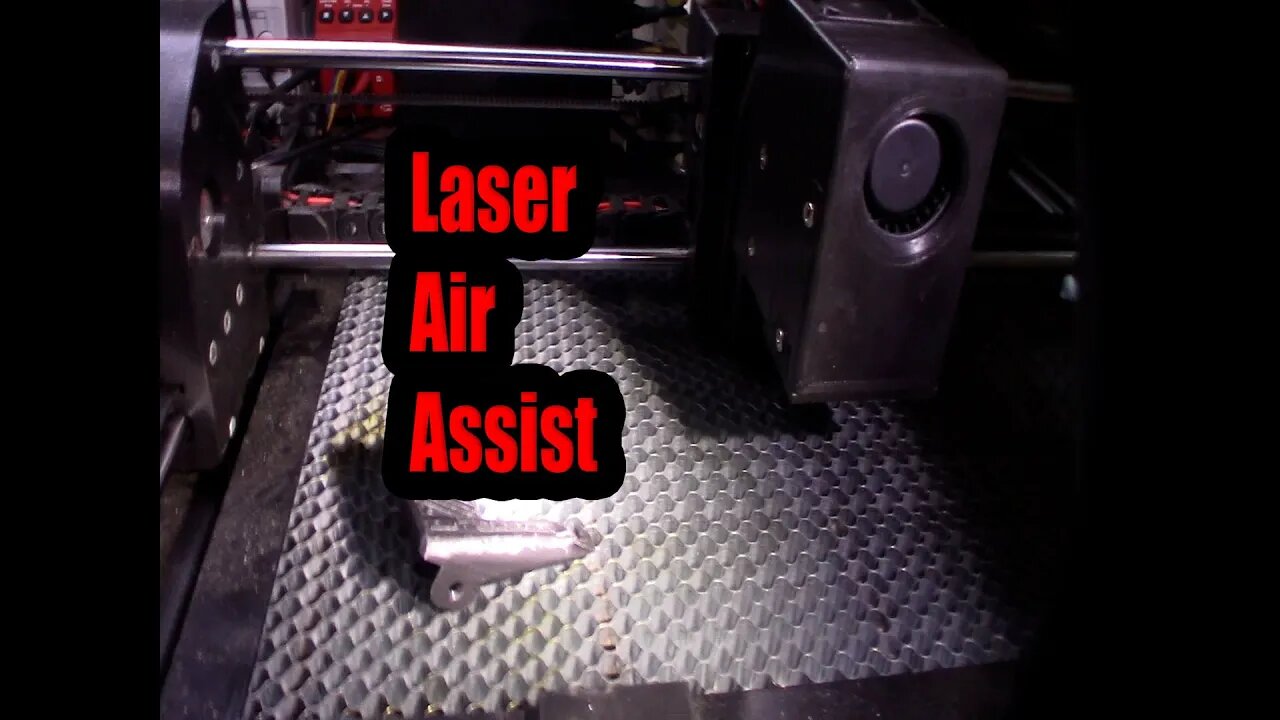

I designed this air assist box in fusion 360. I wanted something that was self contained and did require an air compressor. The smoke put off my the laser dampens its effectiveness. I'm using a MKS DLC 2.0 but most GRBL boards have an A3 pin. The command to turn on the A3 Pin is M8. To turn off the command is M9. I designed air tip for quick change

4020 Fan on Amazon
https://www.amazon.com/gp/product/B07MDW847M/ref=as_li_tl?ie=UTF8&tag=fintechcomm0f-20&camp=1789&creative=9325&linkCode=as2&creativeASIN=B07MDW847M&linkId=042e6934fdf04db19bf93e4e36e2330a

Mosfets on Amazon
https://www.amazon.com/gp/product/B01I1J14MO/ref=as_li_tl?ie=UTF8&tag=fintechcomm0f-20&camp=1789&creative=9325&linkCode=as2&creativeASIN=B01I1J14MO&linkId=56d682fc90274b837aff3bb373db8c2d

Thingiverse Project Page
https://www.thingiverse.com/thing:4724209
