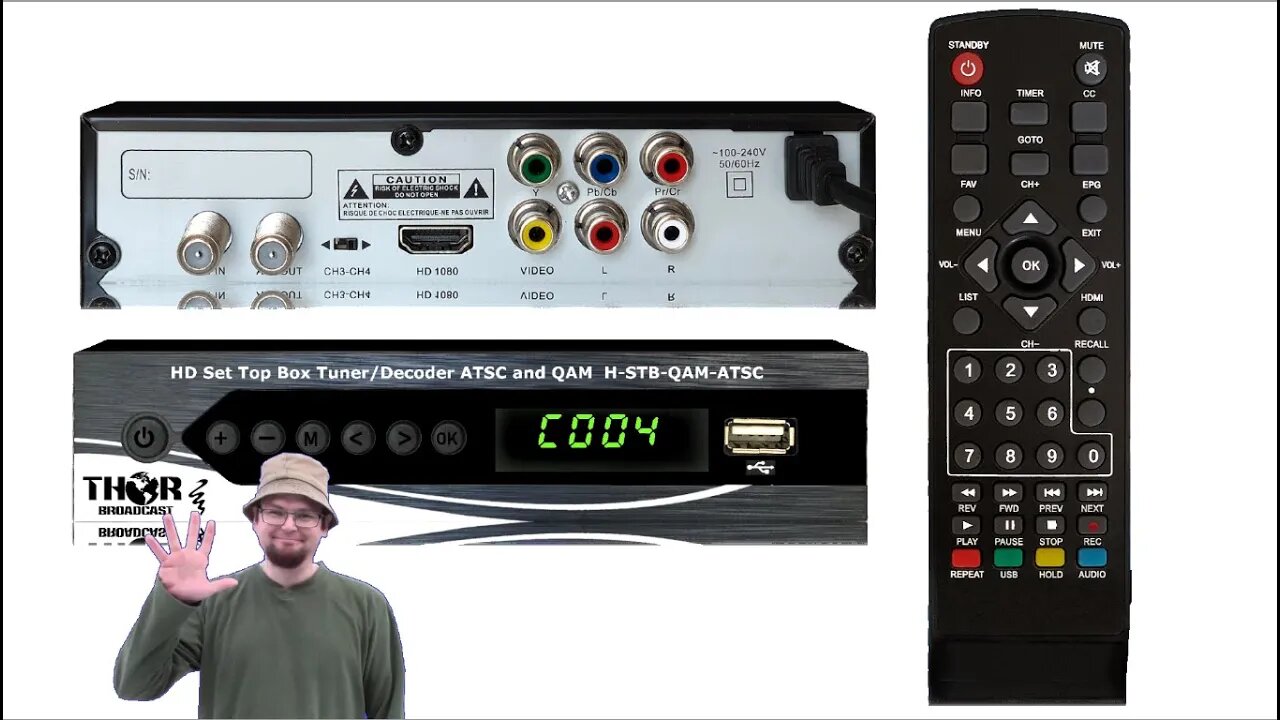

Digital TV Tuner Set Top Box - PVR - THOR QAM CATV RF and ATSC RF to HDMI Decoder - How to set up
H-STB-QAM-ATSC is a unique universal dual-standard Set Top Box - IRD Integrated Receiver Decoder and PVR Recorder -Digital TV converters https://thorbroadcast.com/
https://www.youtube.com/channel/UCpAAZxw2NB3TQAtMSfH0adw/videos
1) CATV RF Off the Air antenna digital ATSC signal Tuner Decoder
2) CABLE TV Digital DVB-C Annex B QAM 64/256 Tuner Decoder.
https://thorbroadcast.com/product/qam-catv-rf-and-atsc-rf-to-hdmi-decoder-stb-8230.html
This decoder can decode ATSC and Clear QAM Modulated RF.
The decoder has 4 Mager Outputs :
1) HDMI output up to 1080p60
2) YPbPr component Audio Video Output up to 1080i (RCA connectors )
3) CVBS Analog Baseband Video and Audio output (RCA connectors)
4) CATV RF Analog Output NTSC/PALchannel 3 and 4 ( Application - Digital RF to Analog NTSC /PAL converter)
It could be used for the following applications :
1) Decoding ATSC OFF the Air signal from the Antena
ATSC to HDMI
ATSC to YPbPr
ATSC to CVBS Digital to Analog conversion
ATSC to ANALOG RF CH 3/4 as a Digital to Analog converter
2) Decoding Clear CABLE TV QAM RF
QAM to HDMI
QAM to YPbPr
QAM to CVBS - Digital to Analog conversion
QAM to ANALOG RF CH 3/4 as a Digital to Analog converter
The unit has also built-in recoding PVR Recorder using external USB storage source like USB stick
Tags: Coax to HDMI
Auto & Manual search, 4000channels for TV & Radio
ATSC and DVB-C Annex B QAM 64/256
EPG for enhanced program information, favorite channel and station list
USB2.0 PVR for record&playback TV channels
16:9 full screen, 4:3 letterbox & fullscreen
Support Teletext and DVB subtitle
Timer On/Offsetting
Parental guidance locking?
Full function remote control
Low power mode
HDMI output up to 1080p/60
YPbPr video output up to 1080i/60
CVBS baseband video ouput up to 480i
ANALOG RF OUTPUT CH 3 or 4 selectable NTSC/PAL
1) How many QAM channels do you need to convert to analog RF?
How many TS's in one QAM?
2)
As I mention, this is the best choice: H-STB-QAM-ATSC
This tuner has QAM RF input, you can decode any program and it has also ANALOG RF output channel 3 or 4
If you need a different analog channel than 3/4 we would need to add an additional Analog Agile modulator as a second box. It would take the composite Video Audio from the first STB decoder and output and agile RF analog NTSC or PAL Channel.
+++++++++++++++++++++++++++++++++++++++++++++++++++++++
