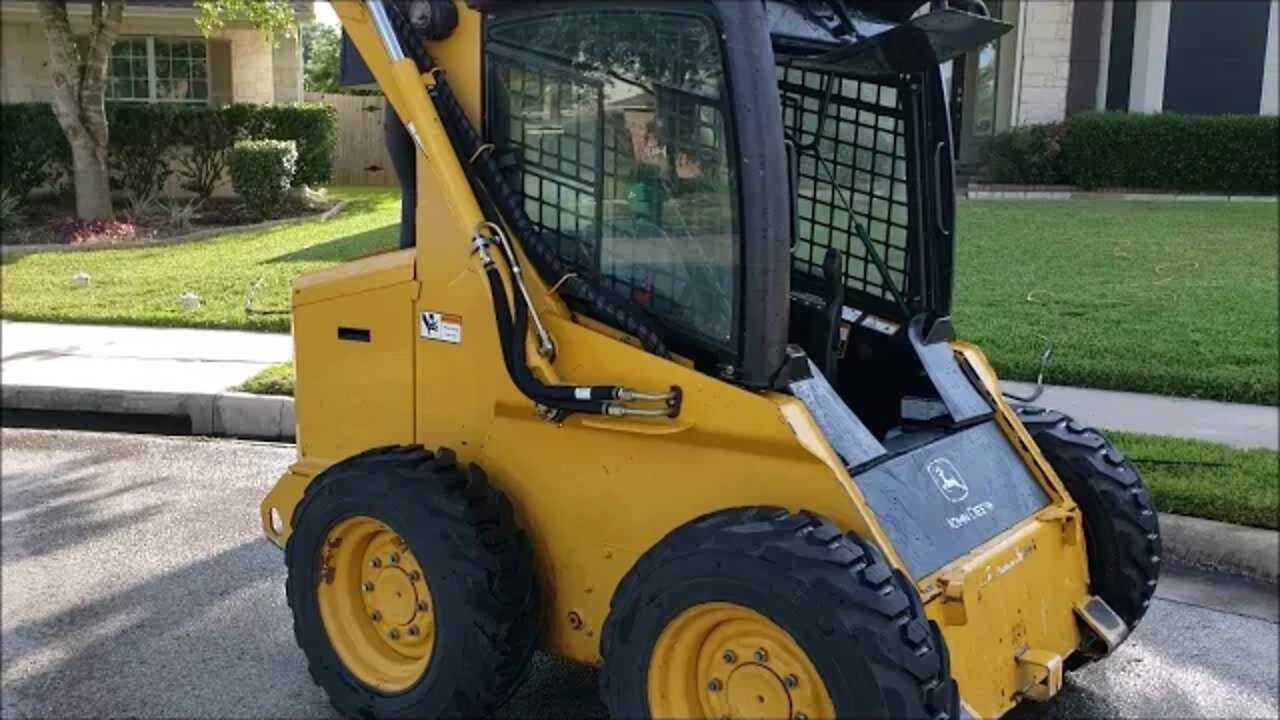

Lifting the Cab on a John Deere 317 Skid Steer
#skidsteer #johndeere #maintenance #skidloader #clean
Just a short video about how to lift the cab on a John Deere 317 Skid Steer. You need to lift the cab every now and then to keep it cleaned out. This compact wheel loader can sometimes get sticks and debris under the cab when doing brush work.
Some specs on the John Deere 317 Skid Steer:
Dimensions
Dimensions
A
Length With Bucket
10.49ft in
B
Width Over Tires
5.35ft in
E
Ground Clearance
8.19in
C
Height To Top Of Cab
6.29ft in
D
Wheelbase
3.53ft in
F
Length W/O Bucket
8.51ft in
G
Clearance At Max Lift And Dump
7.4ft in
H
Reach At Max Lift And Dump
29.1in
Turning Radius From Center - Inc Bucket
78.9in
Specifications
Engine
Number Of Cylinders
4
Engine Make
2240
Engine Model
4042T
Gross Power
61hp
Net Power
57hp
Power Measured @
2800rpm
Aspiration
Turbocharged
Displacement
149cu in
Operational
Operational Weight
6300lb
Fuel Capacity
16gal
Max Speed
6.8mph
Tire Size
10x16.5 8PR
Operating Voltage
12V
Alternator Supplied Amperage
70amps
Loader
Breakout Force
5500lb
Operating Load Rating
1750lb
Tipping Angle
3700degrees
Bucket Capacity
0.6yd3
Hydraulic
Pump Flow Capacity
17gal/min
Relief Valve Pressure
3450psi
-
