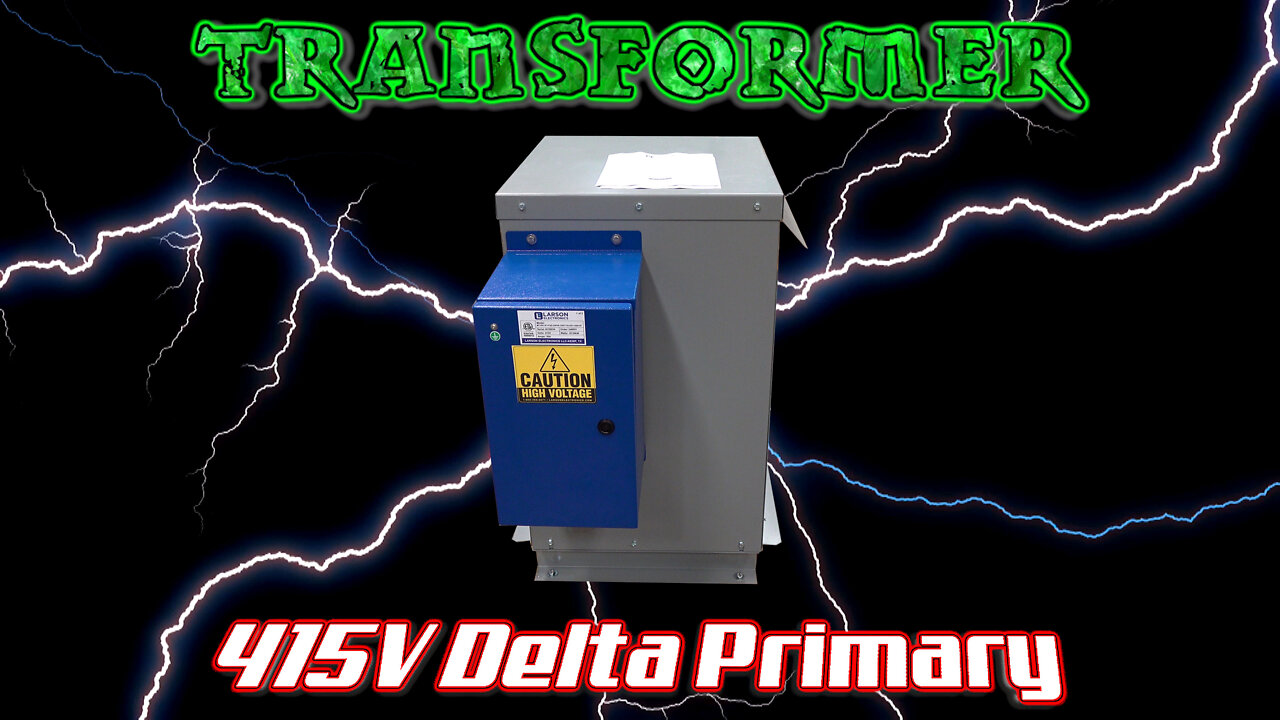

25 kVA Distribution Transformer, 415V Delta Primary, 230Y/133 Wye-N Secondary, Ventilated

https://www.larsonelectronics.com/product/279999/25-kva-3ph-doe-transformer-415v-delta-primary-230y-133-wye-n-secondary-n12-ventilated-60-hz

The MT-ISX-3P-415D-25KVA-230Y.133-GD1-4502-87 from Larson Electronics is a Three Phase 415 V to 230Y/133 25 KVA DOE Efficiency Transformer that is powerful, reliable, and designed with the environment in mind. Suitable for indoor applications, the MT-ISX-3P-415D-25KVA-230Y.133-GD1-4502-87 provides increased reliability and protection against critical equipment failures. This 25 KVA isolation transformer is designed for distribution loads and potential seismic activity. The lower operating costs, lower heat emissions, and lower cost of ownership make this transformer ideal for a wide range of applications and businesses.

Transformer Features: The MT-ISX-3P-415D-25KVA-230Y.133-GD1-4502-87 DOE Efficiency transformer is a three phase transformer with a 25 KVA capacity rating. This isolation transformer is configured with an input voltage of 415 V Delta 3-Phase AC that can operate at +/- 5% of the rated input voltage. It also provides an output voltage of 230Y/133 V Wye-Neutral 3-Phase AC on the secondary side. There is a 50-amp circuit breaker on the primary side. Featuring robust construction, this unit`s cores are manufactured with non-aging, cold-rolled silicon steel laminations using state of the art technology.

This unit boasts a low cost of ownership and is highly energy efficient. Lower heat emissions mean less cooling is needed as well. The standard NEMA Type 12 enclosure makes the unit suitable for indoor applications and is designed to be floor mounted. Wall mount brackets or additional mounting accessories can be purchased separately. This 25 KVA distribution transformer features 220°C insulation with a 150°C temperature rise.
