Name: AutoCAD RC Rebar Scheduler & Convert to Excel
Uploaded: 2021-10-16T09:47:31+00:00
Duration: 4 min 22 s
Description: A VBA macro I made to improve REBAR bending schedule creation time. To use, you select all callups and click the button. This extracts all bar marks, bar types and number of bars from all selected cal

2 years ago

A VBA macro I made to improve REBAR bending schedule creation time.

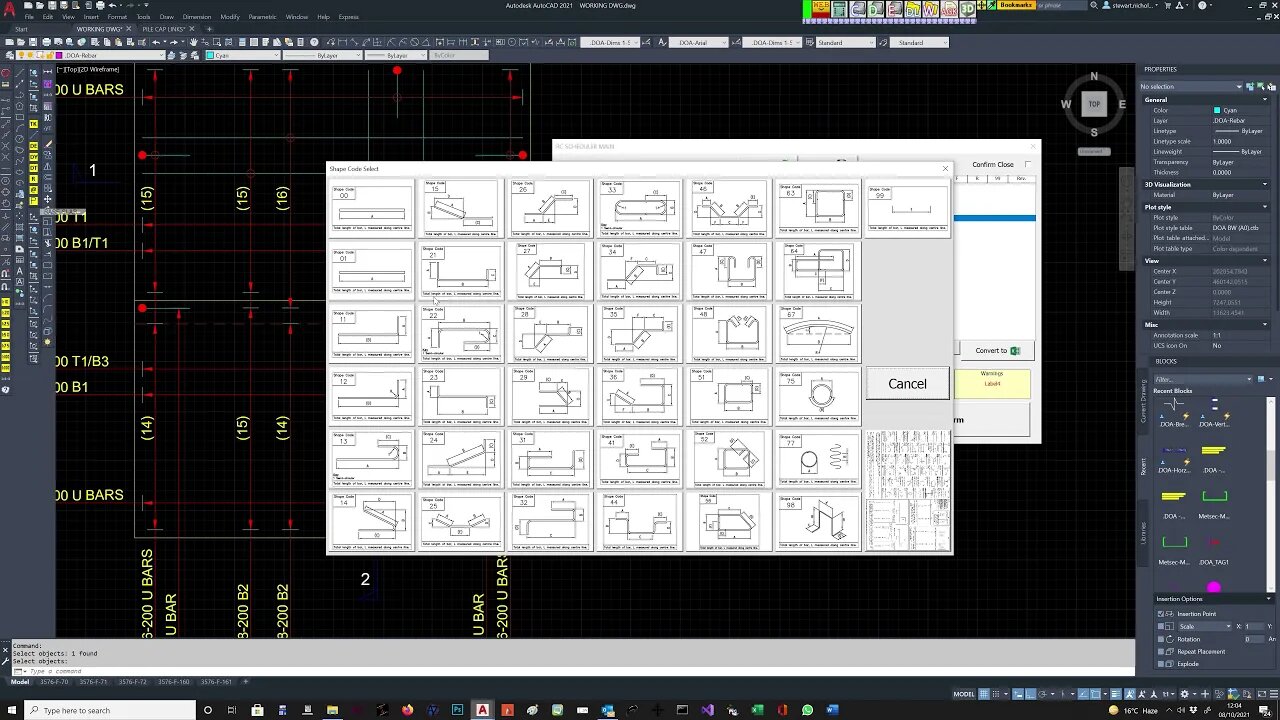

To use, you select all callups and click the button. This extracts all bar marks, bar types and number of bars from all selected callups. The member name and total number are already filled in.
The next step is to measure all bars, or manually input the dimensions ... remembering to take of tolerances when necessary.
In a future update, I will enable you to draw the bars accurately with a custom block, and dimensions will automatically be extracted.

The newly released Bending Schedule code BS 8666:2020 has been included so the old and new code can be used.
